Crestron CCS-UC-1-AV W/PS

Crestron CCS-UC-1-AV W/PS

Warranty: One-Year Manufacturer Warranty from the date of invoice,Conditions apply

Description of product

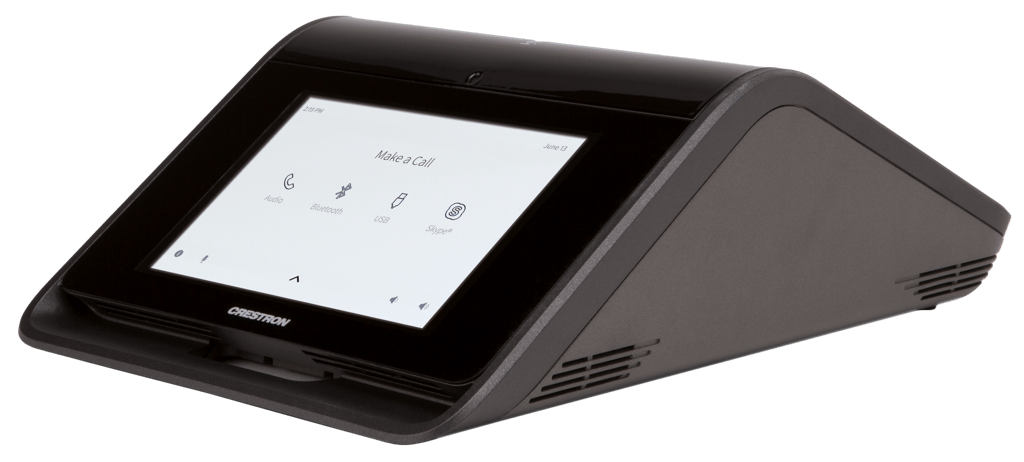

The Crestron Mercury Tabletop UC Video Conference System (CCS-UC-1-AV W/PS) provides a complete video conference room solution for open-platform UC applications. In one stunning tabletop console device, Crestron Mercury comprises a high-performance, full-duplex conferencing speakerphone and touch screen controller with extensive connectivity options for BYOD devices and networked solutions. The complete system includes cables, power supply, and camera.


Ethernet Dual-port 10/100 Mbps; enterprise grade security and management including IEEE 802.1X, Active Directory authentication, LDAP, Kerberos, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, digest access authentication, password login, HTTPS secure provisioning, XiO Cloud client; primary port is IEEE 802.3at Type 2 PoE+ compliant
Touch Screen 7 inch (178 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1280 x 800 pixels
Mic Mute Symbol & Light Bar (2) Capacitive "buttons" with bi-color LEDs, either button toggles between mute and unmute, the symbol LED blinks green when the unit is powering up, all LEDs illuminate red when the mic is muted, all LEDs illuminate green when the mic is unmuted during an active call or online meeting
Audio Codec Support G.711, G.722, G.729, Siren 7
Speaker Full range speaker, 11 Watts amplifier power, 95 dB SPL at 0.5 m maximum output, 90 Hz to 22 kHz frequency response
Microphones 360deg quad mic array, 20 ft (6 m) typical pickup range
Camera Input Resolution HD 1080p @ 30 fps
Content Input Resolutions Up to 1920x1080@60Hz (1080p60)
Display Output Resolutions 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60)
Bluetooth Bluetooth 4.0 device pairing for wideband speech (HFP) and multimedia audio streaming (A2DP); Crestron PinPoint proximity detection beacon [4]
Country of Origin USA
Brand Crestron
