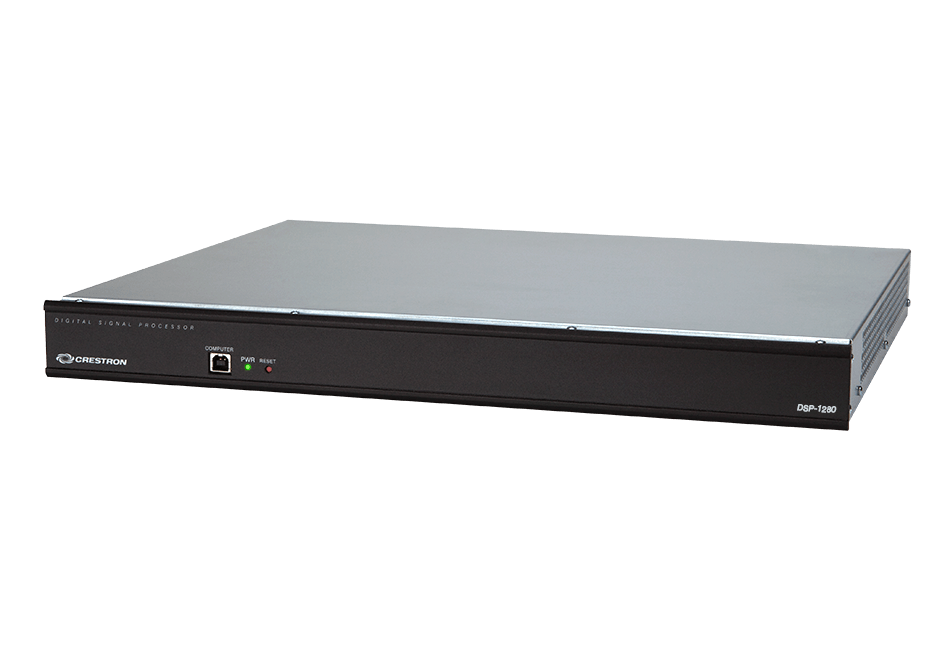

Crestron DSP-1280
Warranty: One-Year Manufacturer Warranty from the date of invoice,Conditions apply
Description of product
The Crestron Avia family of digital signal processors leverages the highest quality components and the expertise of veteran audio industry engineers to deliver a revolutionary audio processing platform that s easy to integrate and configure. It has all the features and performance top sound system designers demand complemented with an intuitive graphical workspace conceived to inspire exceptional results quickly.
Specifications
| Analog-To-Digital Conversion | 24-bit 48 kHz |
| Digital-to-Analog Conversion | 24-bit 48 kHz |
| THD | 0.001%, 20 Hz to 20 kHz, 0 dB gain, +4 dBu input; 0.01%, 22 Hz to 22 kHz, 54 dB gain, -50 dBu input |
| Dynamic Range | 110 dB, 22 Hz to 22 kHz, 0 dB gain |
| USB Device | USB device port for computer console (setup) |
| MIC/LINE INPUTS\n1 12 | (12) 3-pin 3.5 mm detachable terminal blocks; Balanced microphone/line-level audio inputs; Input Level: +24 dBu maximum; Gain Range: 66 dB; Input Impedance: 10k Ohms balanced; Phantom Power: +48 Volts DC, 12 mA, software enabled/disabled per channel |
| LINE OUTPUTS\n1 8 | (8) 3-pin 3.5 mm detachable terminal blocks; Balanced/unbalanced line-level audio outputs; Output Level: +24 dBu maximum; Output Impedance: 150 Ohms balanced |
| Country of Origin | USA |
| Brand | Crestron |
