CRESTRON  FLEX UC-SB1-CAM

CRESTRON FLEX UC-SB1-CAM

Warranty: One-Year Manufacturer Warranty form the date of invoice,Conditions apply




Features
  • CAMERA inbuilt
  • DSP inbuilt
  • USB Audio In/Out
  • Analog Input,,Analog Input Sensitivity,Analog Output
  • Works with WEBEX, ZOOM, TEAMS, GOTOMEETING, SKYPE, POLY or any other soft vc systems

Description of product

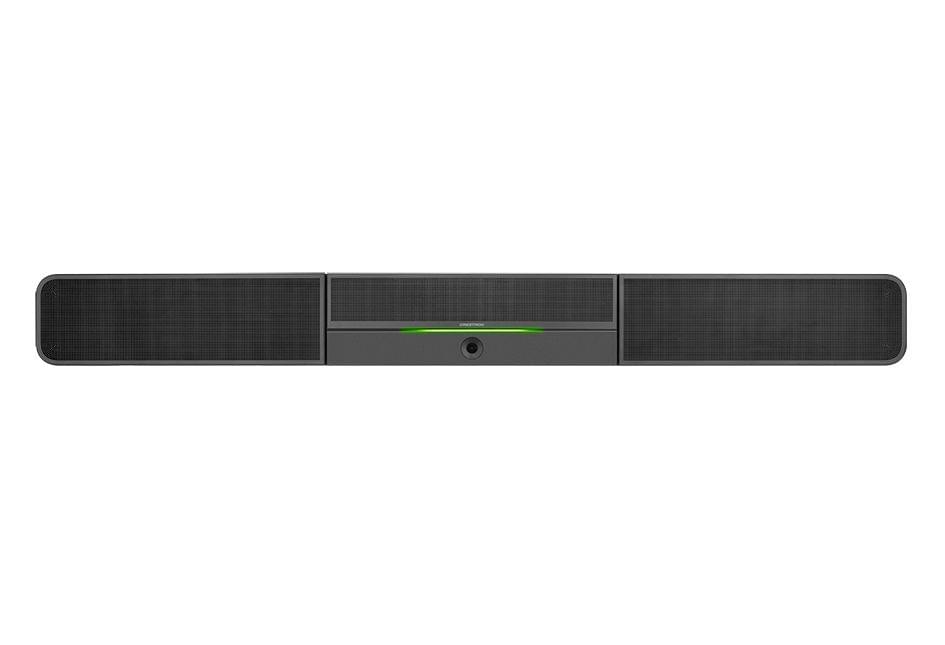

A sleek and stylish soundbar comprising a high‑performance conferencing speakerphone and camera in one stunning front‑of‑room device. Installs cleanly beneath the room display, and interfaces with any computer via USB.

Specifications

Microphone Linear quad‑element far‑field adaptive beamforming microphone array Pickup Range \t15 ft. (4.6m)1 Pickup Angle \t180° Horizontal Frequency Response \t20 Hz to 8 kHz Audio
Audio DSP,USB Audio In/Out,Analog Input,,Analog Input Sensitivity,Analog Output
POWER 500 mA maximum @ 100‑240 VAC, 50/60 Hz,22 W
Speakers Woofers,Passive Radiators,Tweeters, Amplifier Power Frequency Response \t80 Hz to 20 kHz (±3 dB) Effective Output Level \t91 dB SPL @ 1 m, both channels driven at full power
Video USB Camera Input
CONNECTORS Connectors AUDIO IN \t(1) 3.5 mm TRS mini‑phone jack; Unbalanced stereo line‑level audio input; Input Level: 1 Vrms maximum; Input Impedance: 10k Ohms AUDIO OUT \t(1) 3.5 mm TRS mini‑phone jack; Unbalanced stereo line‑level audio output; Output Level: 1 Vrms maximum; Output Impedance: 100 Ohms PC \t(1) USB 3.0 Type‑B connector, female; USB 3.0 device port; Connects to computer; 6 ft (1.83 m) USB 3.0 Type B to Type A cable included CAMERA \t(1) USB 3.0 Type‑A connector, female; USB 3.0 host port; Connects to the internal camera output via a 6 in. (13 cm) USB Type‑C™ to USB 3.0 Type A cable 100‑240V~ 0.5A 50/60Hz \t(1) IEC 60320 C14 main power inlet; Mates with removable power cord, included
CAMERA Model \tHuddly IQ (mounted internally) Image Sensor \t12 megapixel Sony® IMX477 Type 1/2.3 CMOS sensor Lens \tHigh precision, ultra wide angle, six element aspherical glass lens Field of View \t150º diagonal, 120º horizontal, 90º vertical Aperture \tf/2.8 Processor \tIntel® Movidius® Myriad® X VPU with Neural Compute Engine hardware accelerator Pan/Tilt/Zoom \t3x lossless digital zoom, pan, and tilt Autozoom \tGenius Framing automatic lossless digital zoom intelligently frames people in the room Dynamic Light Optimization \tAuto‑adjusts light levels and white balance Noise Reduction \t3D noise reduction, bias compensating spatio‑temporal filtering, wide area chroma filtering, flicker elimination Scaling \tReal‑time scaling, dewarping, and perspective correction People Counting \tDetects and reports the number of people in frame
Country of Origin USA
Brand Crestron
