Description of product

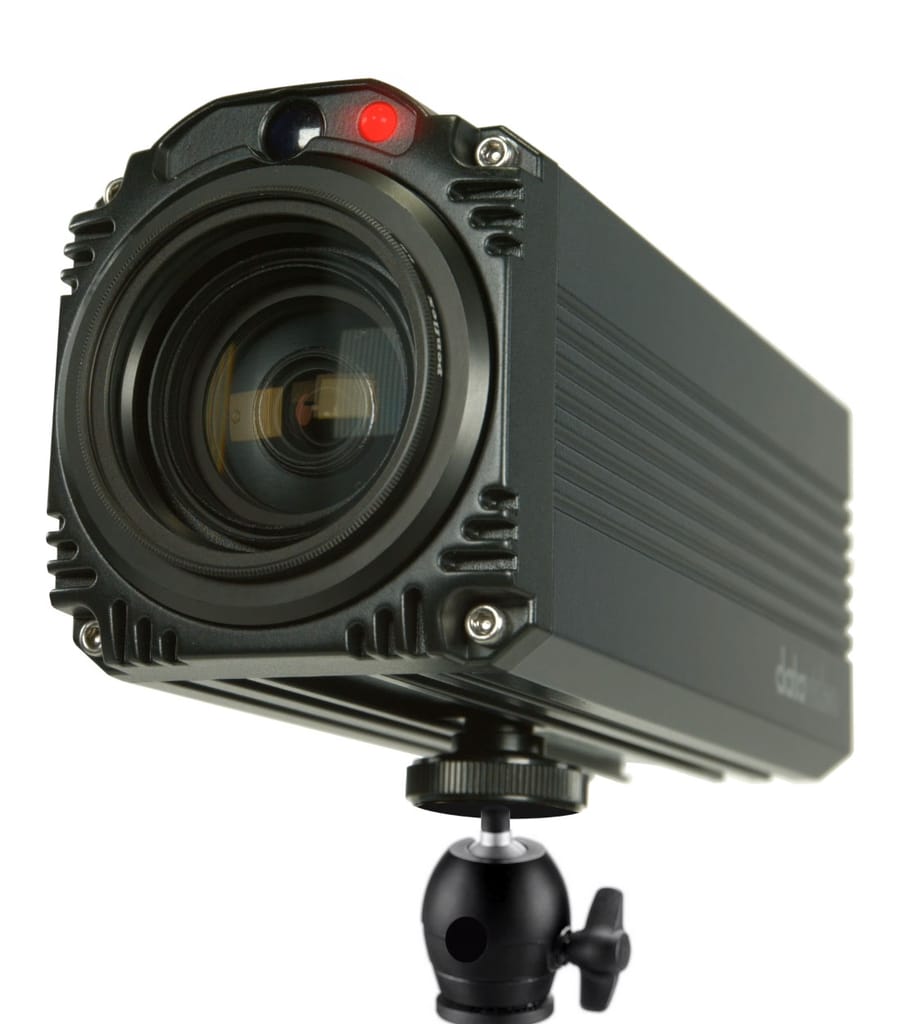

HD Block Camera,30x optical zoom with digital noise reduction,1x 3G-SDI, 1x HDMI video output,Digital Noise Reduction Function zoom (DNR)
Specifications
| Video Format | 1080p 59.94/50/29.97/25 1080i 59.94/50 720p 59.94/50 |
| Video Output | HDMI (V1.3) x 1 3G-SDI x 1 |
| Image Sensor | 1/2.8 type progressive scan CMOS sensor |
| Effective Pixels (approx.) | 2.14 Mega pixels |
| S/N Ratio | 50 dB |
| Min. Illumination | Color : 0.4 lx (F1.6, 1/30 sec, 50IRE, Gain: High) B/W : 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High) |
| Electronic Shutter | 1/25 (1/30), 1/50 (1/60), 1/75(1/90), 1/100, 1/120 (1/125), 1/150(1/180), 1/215( 1/250), 1/300(1/350), 1/425(1/500), 1/600(1/725), 1/1000, 1/1250(1/1500) sec |
| Zoom Ratio | 30x Optical Zoom |
| Gamma Control | Off / Normal / Standard Mode 1-4 |
| Iris Control | Auto / Manual |
| Digital Noise Reductions | Yes |
| On-Screen Display (OSD) | English |
| White Balance | AWB, MWB, One push WB, Outdoor, Indoor, Fluorescent |
| AGC / Gain Control | Auto / Manual (0 to 28 step) Max. Gain Limit (6 to 28 step) |
| Mirror / Flip Image | Yes |
| Focus Mode | Auto / Manual |
| Focal Length | f=4.3 mm (WIDE) to 129 mm (TELE) F1.6 to F4.7 |
| Field of View (Horizontal, Wide) | Approx. 63.7° (WIDE END) / 2.3° (TELE END) |
| Image Compensation | Day & Night function |
| Country of Origin | Taiwan |
| Brand | Datavideo |
