Description of product

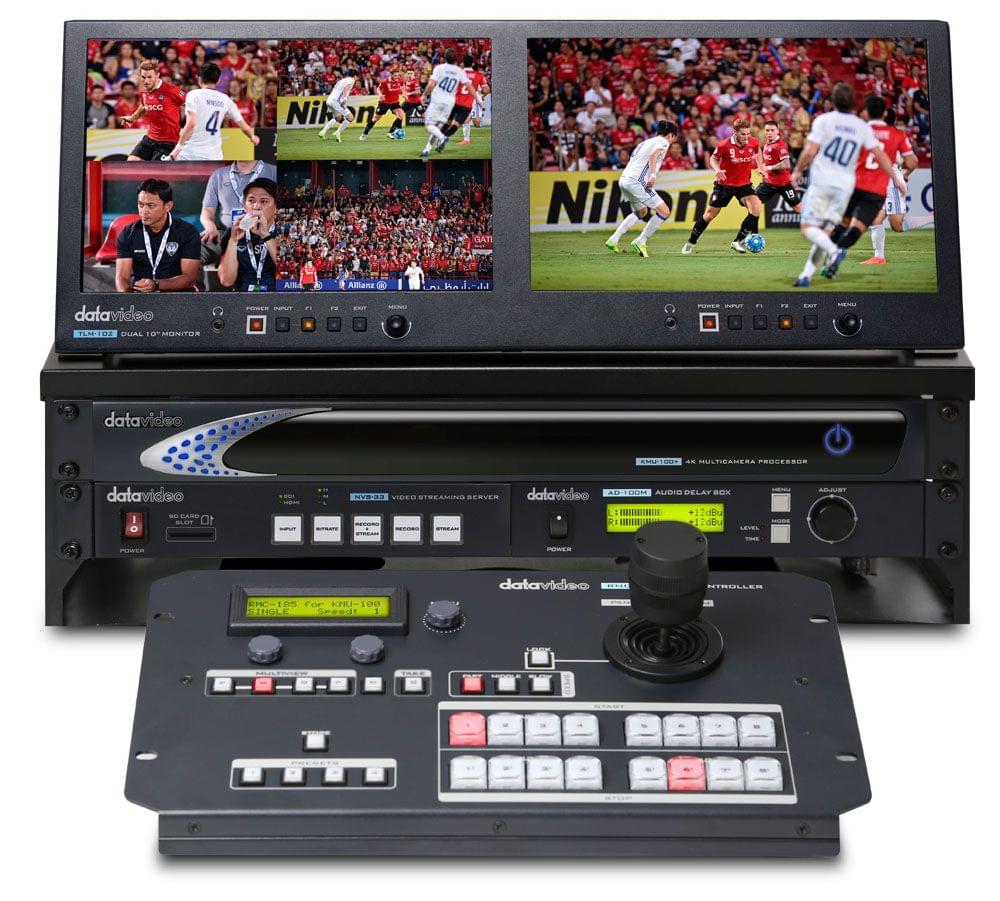

2 Input, 8 Virtual Camera Portable Video Production Studio, It Supports switching, streaming, recording, audio mixing and monitoring and Supports conversion from two 4K cameras (SDI or HDMI) to eight 3G-SDI video outputs, giving users more live video switching choices.


Video Standard UHD & HD
Video Input 2 sets of SDI Input: each set of 4x SDI 1x 3Gb/s or 12Gb/s SD/HD/4K. Supports single link 4:2:2 3x 3Gb/s SD/HD/4K. Supports single link, dual link, and quad link 4:2:2 2x HDMI Input: each of HDMI support for Ultra HD 4K 60p in 4:2:0/4:2:2 2x 12G/6G/3G-SDI support 4K60 4:2:2 single link and quad link 2x HDMI 1.4b/2.0 support 4K60 4:2:0 / 4:2:2
Video Output 8x 3G/HD/SD-SDI support single link 4:2:2 2x HDMI 1.4 support 1080p/50/60 4:2:2
Embedded Audio Support SDI: 16 Ch embedded in HD/4K. 8 Ch embedded in SD. HDMI: 8 Ch embedded in SD, HD and Ultra HD 4K
Streaming Protocols TS over TCP/UDP (unicast & multicase) RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming) RTMP/RTMPS (Publish) HLS
Streaming Encode H.264/AVC, Main/High Profile
Streaming Video Bitrate Record Only: Up to 16Mbps (1080p50/60) Stream Only: Up to 10Mbps (1080p50/60) Rec+Stream: 10Mbps (1080p25/30)
Streaming Video Rate Mode CBR
Streaming Audio Mode Stereo/Mono
Streaming Audio Bitrate Stereo: 64 tio384Kbps Mono: 32 to 192Kbps
Streaming Storage SD Card
Recording Storage Medium SD Card
Recording Storage File System NTFS, FAT, exFAT
Country of Origin Taiwan
Brand Datavideo
