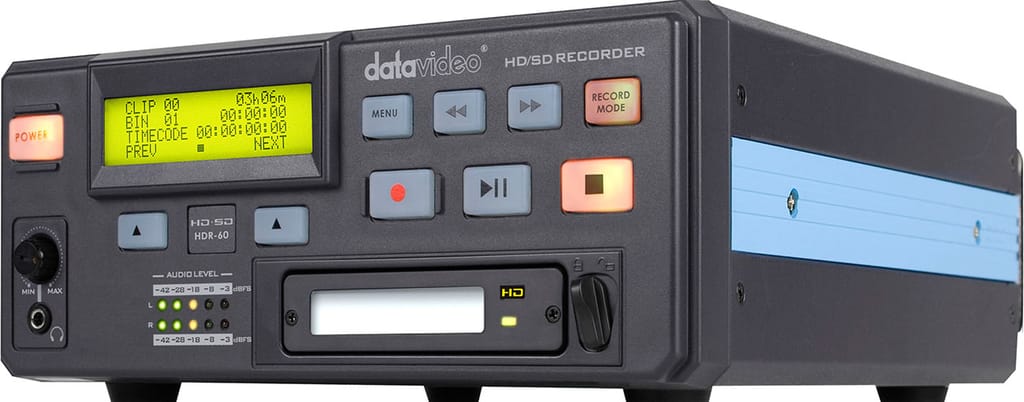

Description of product
Hard drive based portable video recorder,Supports multiple input and output configurations,Convenient for post-production or play out
Specifications
| Supported Video Input Signal | 1x SDI |
| Monitoring / Playback Output | 1x SDI (Input Loop Thru) 1x HDMI, 1x SDI (Out) |
| Embedded Audio | Both In & Out (8-CH on SDI/HDMI) |
| Storage Medium | 2.5" Hard Drive / SSD*, Max capacity 1TB |
| Estimated Record Time (min per 10GB) | SD: 19 (50Mbps) - 70 (8Mbps) HD: 8 (125Mbps) - 62 (10Mbps) |
| Recording Media | 1x 2.5" Removable HDD/ SSD |
| Storage File System | NTFS |
| Video Recording Bit Rate / Color Sampling | MPEG2 Long GOP HD: 1. 10/ 25Mbps 4:2:0 1440x1080/1280x720, 2. 35/ 50/ 65/ 120Mbps 4:2:2 1920x1080/1280x720, MPEG2 Long GOP SD: 1. 8Mbps 4:2:0 720x480/720x576 (to be F/W upgrade) 2. 15/ 30/ 50Mbps 4:2:2 720x480/720x576 MPEG2 I-Frame Only HD: 1. 80/ 100/ 125Mbps 4:2:2 1920x1080/1280x720 MPEG2 I-Frame Only SD: 1. 25/ 50Mbps 4:2:2 720x480/720x576 |
| Audio Recording Format | Uncompressed PCM Sampling rate 48KHz 24bit |
| External Control | RS-232/422 (Dsub 9pin), GPI (min XLR) |
| Country of Origin | Taiwan |
| Brand | Datavideo |
