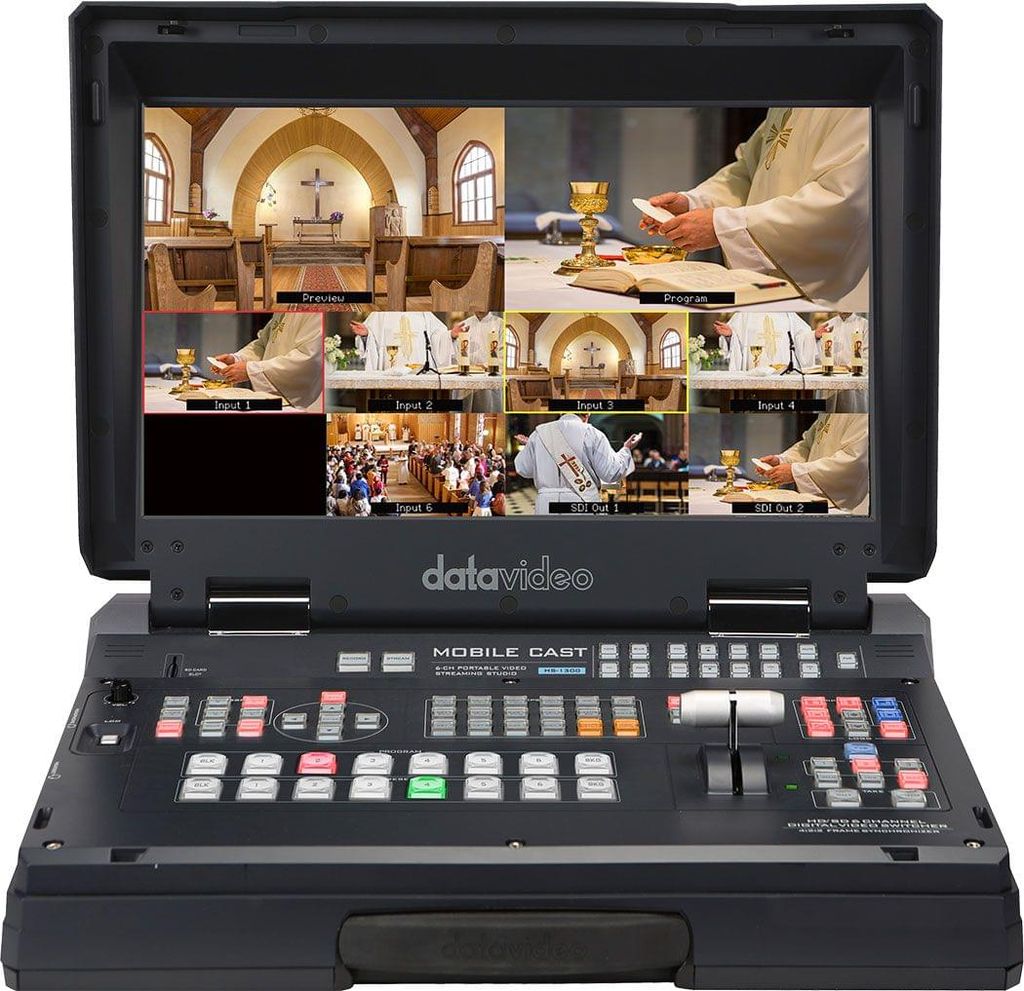

6-Channel HD Portable Video Streaming Studio, The HS-1300 brings a new level of simplicity to production workflows. You'll set up faster and easier thanks to its portable "briefcase" design. And thanks to its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like YouTube and Facebook in no time. The HS-1300 offers a small footprint and supports up to 6 video inputs in HDMI and SDI, and 5 Video Outputs: ( SDI x 2 + HDMI x 3)
|Computer Graphic Interface||2 via HDMI|
|Streaming Control||Web browser UI for configuration and control Socket commands|
|Recording Setting Control||Web UI for system configuration and control|
|Video Input||4 x HD-SDI 2 x HDMI|
|Video Output||3x HDMI 2x SDI assignable: AUX 1-6, PGM, PVW, PGM Clean or Multiview|
|Embedded Audio Support||Input 2 channels, Output 2 channels|
|USK||2x USK support Chromakey|
|Input Routable / Crosspoint||All 6, repeatable|
|Embedded Audio Support Input||Input 2 channels, Output 2 channels|
|DSK||2, support Lumakey & Linear key (Key / Fill)|
|Special Features||Streaming encoder and recorder 2 chromakey virtual studio 9 stinger transition and 30 virtual sets included|
|Streaming Protocols||TS over TCP/UDP (unicast & multicast) RTSP over HTTP/TCP/UDP RTMP/RTMPS (Publish)|
|Streaming Encode||H.264 / AVC, Main/ High Profile Configurable Bit-rate up to 10Mbps|
|Streaming Recording File Format||MP4|
|Country of Origin||Taiwan|
