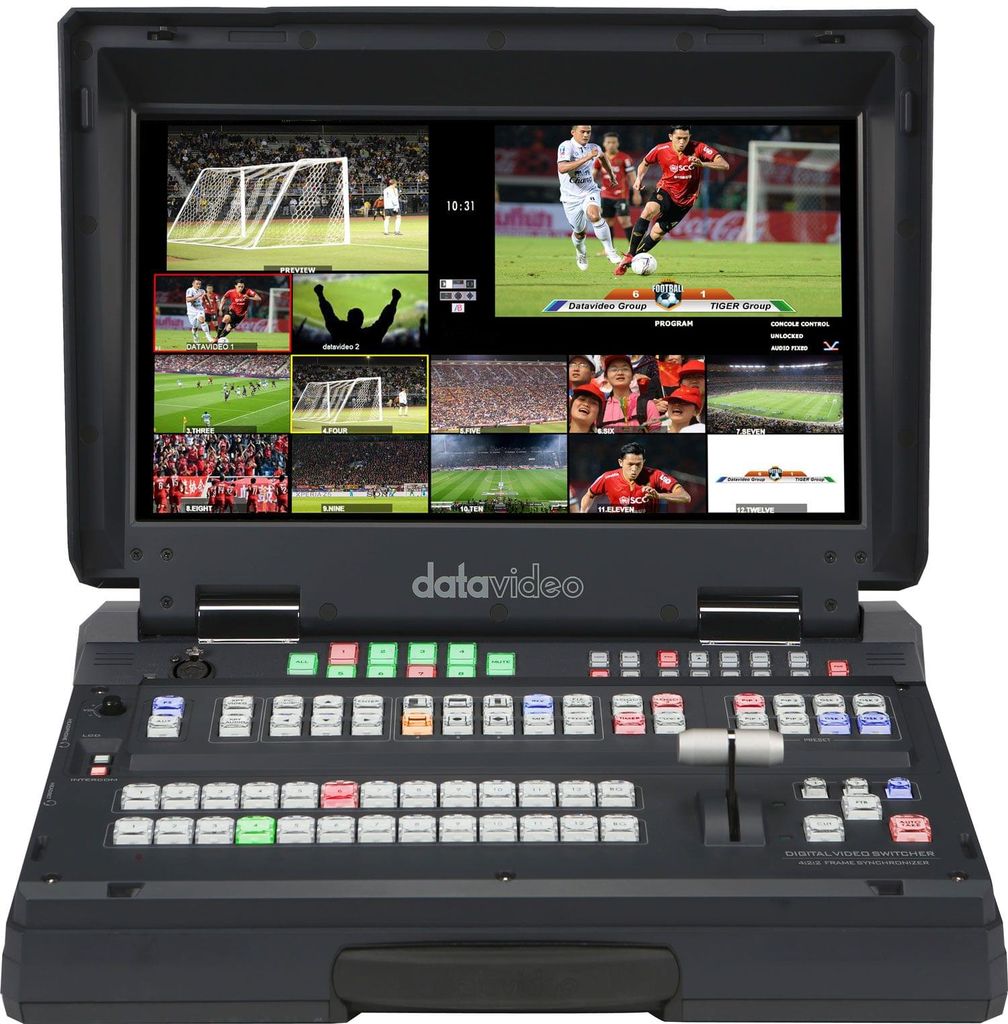

HD/SD 8/12-Channel Portable Video Studio, This professional studio includes a built-in switcher, intercom, tally, audio delay and monitor. Supports up to 12 HD or SD inputs in a variety of configurations, 3 SDI and 1 HDMI freely assignable outputs. 2 x PIP and 2 x DSK assignable for luma key or alpha key. Built-in Monitor Display. 17.3 HD TFT LED backlit monior with resolution 1920x1080 pix. Built in 8 Channel Intercom/Talkback system (4 x belt packs supplied) Add custom graphics to help tell your story with the built-in title overlay system. The SE-2850's included audio-delay feature ensures that you'll be able to keep your audio and video perfectly in sync with one another. This means zero lip sync issues for your professional production.
|Down-converted Output||3x SDI|
|Built-in Monitor Display||17.3 inch HD TFT LED backlit, 1920x1080 pix|
|Computer Graphic Interface||Max 3 via HDMI|
|Video Standard||HD & SD|
|Video Input||Standard: 8x SDI, 2x HDMI Max: 12x SDI, 3x HDMI|
|Video Output||3x SDI assignable: PGM, PVW, AUX & Clean Out 1x HDMI assignable: PGM & multi-view|
|Embedded Audio Support||Input up to 16 channels, Output 4 channels|
|Audio Delay Calibration||Up to 8 frames|
|Logo Insertion||2 (or 1 logo + 1 clock)|
|Input Routable / Crosspoint||All 12, repeatable|
|Embedded Audio Support Input||Input up to 16 channels, Output 4 channels|
|DSK||2, support Lumakey & Linear key (Key / Fill)|
|Built-in Intercom & Tally||8 channels (4 belt-packs incl.)|
|Country of Origin||Taiwan|
