Description of product

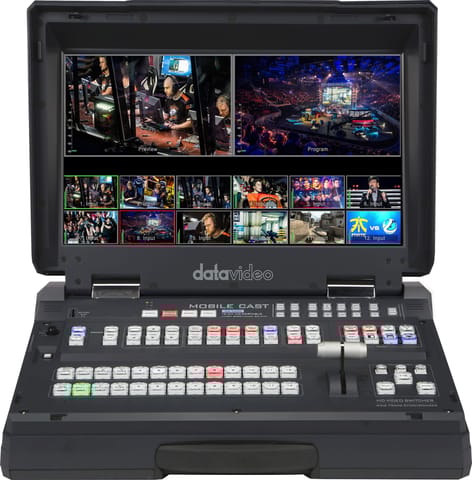

HD 12-Channel HD Portable Video Streaming Studio, The HS-3200 is equipped with 12 inputs (8x SDI+4x HDMI) and 9 outputs (5x SDI+4x HDMI) to help you produce a sophisticated and professional live event. Advanced features include 8x PIPs, 4x upstream keyers for chromakey, linear and luma keys as well as picture-in-picture, 2x DSKs, and 2x independent logos or chromakeyers.
Specifications
| Computer Graphic Interface | 4 via HDMI |
| Streaming Control | Web browser UI for configuration and control Socket commands |
| Video Standard | Full HD |
| Video Input | 8x SDI 4x HDMI |
| Video Output | 5x SDI, 1x HDMI assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source 3x HDMI PGM only |
| Streaming Video Encoding | H.264 / AVC, Main/ High Profile Configurable Bit-rate up to 10Mbps |
| Streaming Audio Encoding | AAC-LC Configurable bit rate range from 32Kbps to 384Kbps Sample rate: 48KHz, 16-bit |
| USK | 4 |
| Input Routable / Crosspoint | Input 2 channels, Output 4 channels |
| Embedded Audio Support Input | Input 2 channels, Output 4 channels |
| DSK | 2, support Lumakey & Linear key (Key / Fill) |
| Country of Origin | Taiwan |
| Brand | Datavideo |
