Description of product

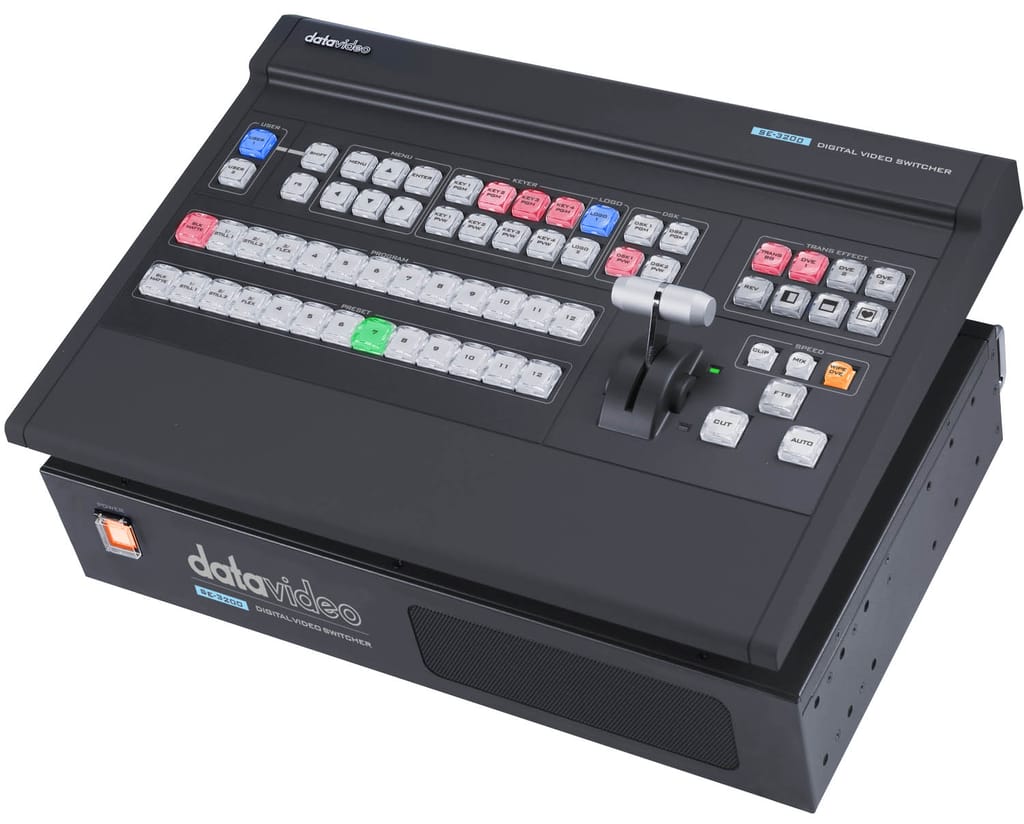

HD 12-Channel Digital Video Switcher,Completely customizable 12 input full HD production switcher,Supports full HD 1080P with scaling on each available input,Create stunning video effects with advanced features
Specifications
| Audio Input | 4x Balanced XLR |
| Audio Output | 2x Balanced XLR |
| Video Standard | Full HD |
| Video Format | 1080p 50/59.94/60Hz 1080i 50/59.94/60Hz 720p 50/59.94/60Hz |
| Video Processing | SDI: 4:2:2 HDMI: YUV 4:2:2, RGB: 4:4:4 |
| Video Input | 8x SDI, 4x HDMI |
| Video Output | 6x SDI Outputs assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source 3x HDMI assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source |
| Embedded Audio Support | Input 2 channels, Output 4 channels |
| Chromakey | 4 |
| USK | 4x Keyer support Chromakey/ Linear/ Luma Key |
| DSK | 2x DSK support Lumakey & Linear key (Key / Fill) |
| Picture in Picture | 8 (4x PIP, 4x Flex Source) |
| Logo Insertion | 2 |
| Still Store | 999+ |
| Tally Output | 1x D-sub 25pin, dual color |
| Country of Origin | Taiwan |
| Brand | Datavideo |
