Description of product

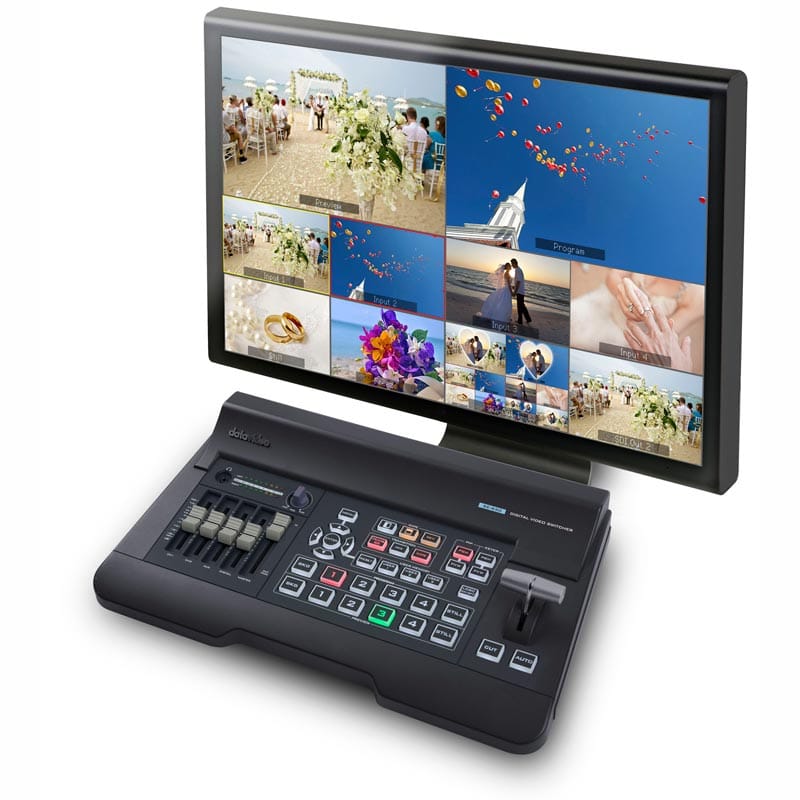

4 Input HD digital video switcher,SDI and HDMI inputs on a budget,Easy on the outside. Professional on the inside,Stunning video effect enrich the scene,Built-in audio mixer,Built-in animations and backgrounds
Specifications
| Audio Input | 1 x Stereo RCA (L/R) 2 x Mono Microphone |
| Audio Output | 1 x Stereo RCA (L/R) 1 x Stereo headphone (Mini Jack with volume control) |
| Video Standard | HD |
| Video Format | 1080i 50/59.94/60Hz 720p 50/59.94/60Hz |
| Video Processing | SDI: 4:2:2 HDMI: YUV 4:2:2 10 bit, RGB: 4:4:4 |
| Video Input | 2x HD-SDI 2x HDMI |
| Video Output | 2 x HDMI (1 is MV, 1 is Assignable) 1 x HD-SDI (Assignable) |
| Embedded Audio Support | Input 2 channels, Output 2 channels |
| Chromakey | 2 |
| USK | 2x Keyer support Chromakey/ Linear/ Luma Key |
| DSK | 1x DSK support Lumakey/ Linear key (Key / Fill) |
| Picture in Picture | 1 |
| Logo Insertion | 1 |
| Still Store | 500 |
| Tally Output | 1x D-sub 15pin, dual color |
| Built-in Audio Mixer | Yes, 4 channels |
| Country of Origin | Taiwan |
| Brand | Datavideo |
