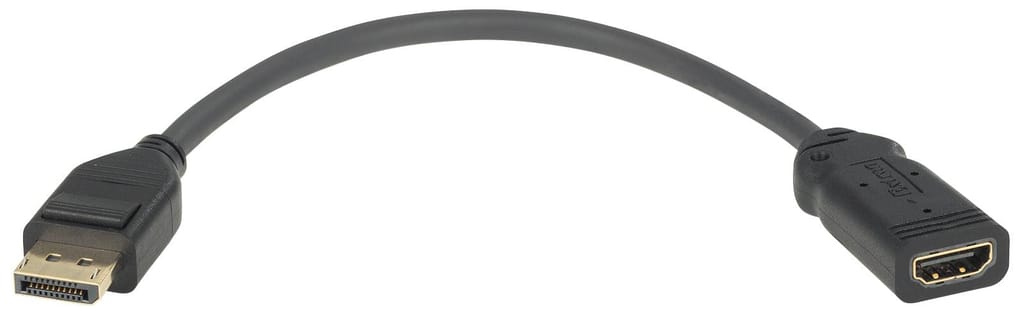

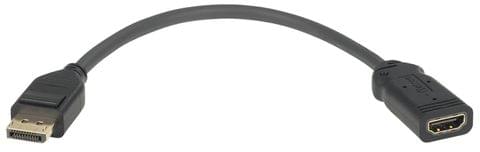

Extron DisplayPort Male to HDMI Female Active Adapter Cable

Extron DisplayPort Male to HDMI Female Active Adapter Cable

INR11,200.00
Warranty: Three-Months Manufacturer Warranty,Conditions apply




Features
  • Provides connectivity between DisplayPort sources and HDMI displays and peripherals
  • Provides active conversion of DisplayPort signals to HDMI
  • Supports resolutions up to 4K/60 @ 4:4:4 with data rates up to 18 Gbps

Description of product

Extron DPM-HDF/0.5 4K PLUS is an active DisplayPort to HDMI adapter for signals up to 4K/60 @ 4:4:4. Active circuitry converts DisplayPort packetized signals to TMDS for connection to HDMI devices. The 6" (15 cm) adapter cable features DisplayPort male and HDMI female connectors with gold-plated contacts and is powered by the connected DisplayPort source device. EDID, HDCP, and audio information are passed through between source and display. The DPM-HDF/0.5 4K PLUS is ideal for connecting DisplayPort-equipped sources to HDMI displays or other sink devices

Specifications

Frame rate24, 25, 30, 50, or 60 fps
Chroma sampling4:4:4, 4:2:2
Colour bit depth8, 10, or 12 bits per colour
Signal typeDisplayPort 1.2, HDMI 2.0b; HDCP 1.4 and 2.3
Max. video data rate18 Gbps (6.0 Gbps per colour)
Resolution rangeUp to 1920x1200 or 1080p @ 60 Hz, 12-bit colour 4K (4096x2160 @ 60 Hz 4:4:4) UHD (3840x2160 @ 60 Hz 4:4:4)
Connector type1 male DisplayPort to 1 Female HDMI type A
Available lengths6" (15 cm) & 6ft(1.8m)
Country of OriginUSA
BrandExtron
