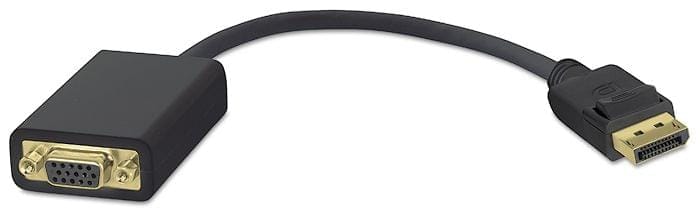

Extron DisplayPort Male to VGA Female Active Adapter Cable

Extron DisplayPort Male to VGA Female Active Adapter Cable

Warranty: Three-Months Manufacturer Warranty,Conditions apply

  • Provides connectivity between dual-mode DisplayPort equipped sources and VGA displays
  • Passes EDID information from VGA display to the source
  • Supports signals up to 1920x1200 @ 60 Hz and 1080p/60

Description of product

Extron DPM-VGAF is an active, one-way adapter that enables transmission of digital signals from dual-mode DisplayPort sources to VGA displays. It supports the DisplayPort Version 1.1a specification and resolutions to 1920x1200 @ 60Hz and 1080/p/60. For ease of installation, the DPM-VGAF features an attached, 6" (15 cm) pigtail and is ideal for use when integrating DisplayPort-equipped laptop computers and other devices with legacy, high resolution analog projectors or flat-panel displays.


Frame rate 60 fps
Colour bit depth 24 bits - 8 bits per colour
Signal type EDID
Resolution range 1920x1200 @ 60 Hz and 1080p/60
Connector type 1 DisplayPort connector to 1 Female VGA
Available lengths 6" (15 cm)
Country of Origin USA
Brand Extron
