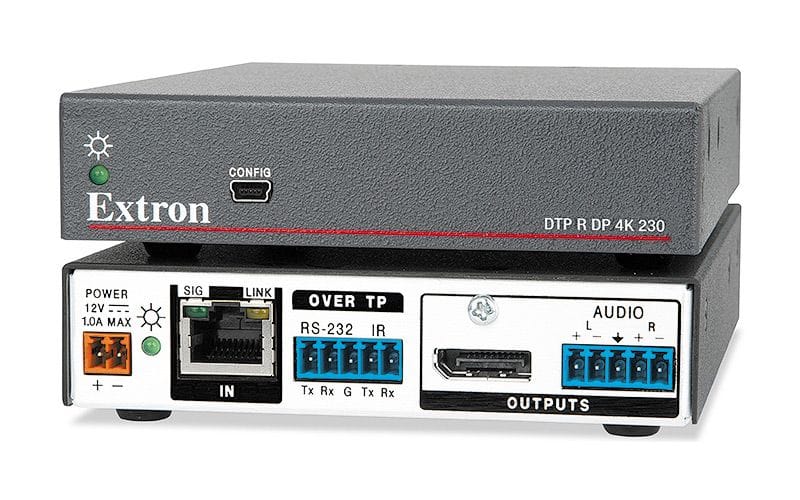

Extron DTP R DP 4K 230
Features
- Receives DisplayPort plus control and analog audio up to 230 feet (70 meters) over a shielded CATx cable
- Supports computer and video resolutions up to 4K
- Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
Description of product
Extron DTP R DP 4K 230 is a digital twisted pair receiver that works with Extron DTP -enabled products to send DisplayPort, audio, and bidirectional RS-232 and IR signals up to 230 feet (70 meters) over a shielded CATx cable. It provides an effective means of incorporating higher resolution DisplayPort signals with embedded audio into DTP Systems. The receiver accepts analog stereo audio signals from a DTP enabled product over the same shielded twisted pair cable. It supports video signals at resolutions up to 4K, including 2560x1600. The compact enclosure size and remote power capability make the DTP R DP 4K 230 ideal for discreet placement in lecterns, behind flat-panel displays, or wherever needed to meet application requirements
Specifications
| Frame rate | 24, 25, 30 fps |
| Video output | 1 DisplayPort |
| Chroma sampling | 4:4:4 or 4:2:2 |
| Colour bit depth | 8 bits per color |
| Signal type | DisplayPort, HDCP |
| Max. video data rate | 10.8 Gbps (2.7 Gbps per lane) |
| Resolution range | Up to 2560x1600* @ 60 Hz or 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz |
| Connector type | 1 female RJ-45 per unit |
| Signal transmission distance | 1080p @ 60 Hz - Up to 230' (70 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable, 2560x1600 @ 60 Hz - Up to 130' (40 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable,4K/UHD @ 30Hz - Up to 130' (40 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable |
| Country of origin | USA |
| Brand | Extron |
