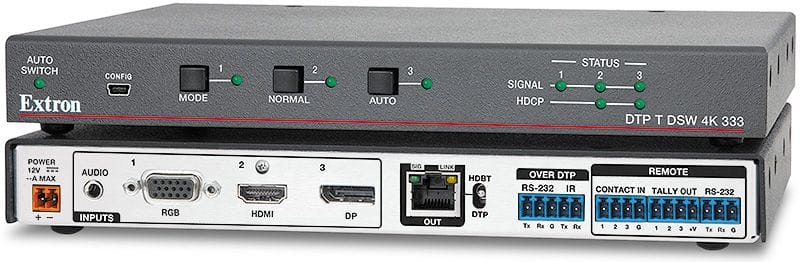

Extron DTP T DSW 4K 333
- Transmits DisplayPort, HDMI, or VGA plus control and analog audio up to 330 feet (100 meters) over a shielded CATx cable
- Auto-switching between inputs
- Supports computer and video resolutions up to 4K
Description of product
Extron DTP T DSW 4K 333 is a three input switcher for sending DisplayPort, HDMI, or analog video, audio, and control up to 330 feet (100 meters) over a shielded CATx cable to Extron DTP 330-enabled products. It provides DisplayPort, HDMI, and VGA inputs, and one DTP 330 output. The DTP T DSW 4K 333 supports video signals at resolutions up to 4K, including 2560x1600. Analog stereo audio embedding and RS 232 remote control facilitate integration in professional environments. Integrator-friendly features include EDID Minder , auto-switching between inputs, audio input assignment, and bidirectional RS 232 and IR pass-through for remote AV device control. The low profile enclosure enables discreet placement in lecterns, beneath tables, or wherever needed to meet application requirements
Specifications
| Frame rate | 24, 25, 30, 50, or 60fps |
| Video output | 1 DTP 330 (output) |
| Chroma sampling | 4:4:4, 4:2:2, or 4:2:0 |
| Colour bit depth | 8 bits per color |
| Signal type | HDMI 1.4, DisplayPort 1.1a, HDCP 1.4 |
| Max. video data rate | HDMI - 10.2 Gbps (3.4 Gbps per color), DisplayPort - 10.8 Gbps (2.7 Gbps per lane) |
| Resolution range | Up to 2560x1600* @ 60 Hz or 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz, 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling |
| Connector type | 1 female RJ-45 per unit |
| Signal transmission distance | 1080p @ 60 Hz - Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable, 2560x1600 @ 60 Hz - Up to 330' (100 m) using STP cable or XTP DTP 24 cable, 4K/UHD @ 30 and 60 Hz - Up to 330' (100 m) using STP cable or XTP DTP 24 cable |
| Video input | 1 VGA-WUXGA RGBHV , 1 single link HDMI (or DVI-D*), 1 DisplayPort |
| Country of origin | USA |
| Brand | Extron |
