Extron DTP T UWP 4K 332 D
- Transmits HDMI, VGA, control, and analog audio up to 330 feet (100 meters) over a shielded CATx cable
- Supports computer and video resolutions up to 4K
- Auto switching between inputs
Description of product

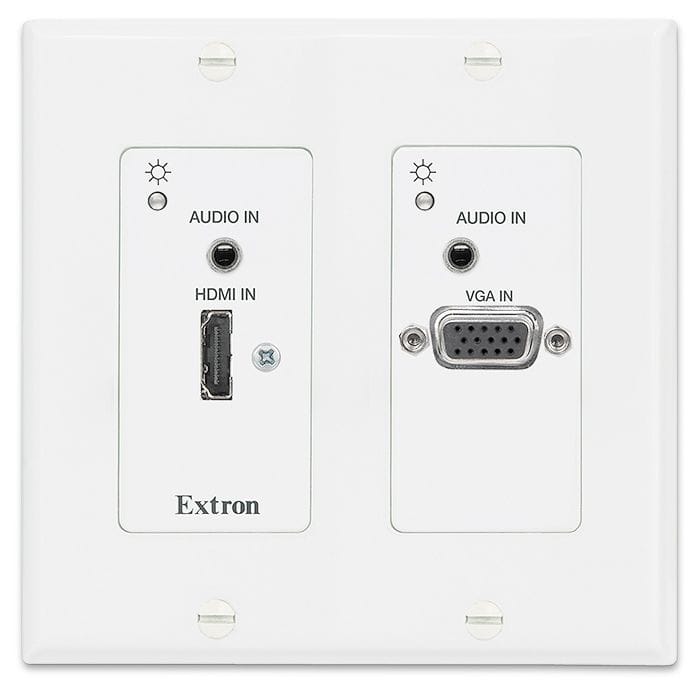

Extron DTP T UWP 4K 332 D is a two input, decorator-style transmitter for sending HDMI, VGA, control, and analog audio up to 330 feet (100 meters) over a shielded CATx cable to Extron DTP 330-enabled products. The HDCP-compliant transmitter provides one HDMI input and one VGA input, both with independent analog stereo audio connections. The DTP T UWP 4K 332 D supports video signals at resolutions up to 4K. Integrator-friendly features include analog stereo audio embedding, EDID Minder , auto-switching between inputs, RS-232 and contact closure remote control for simplified input selection, remote power capability, and bidirectional RS-232 pass-through for remote AV device control. The wall-mountable design of the DTP T UWP 4K 332 D provides the convenience of placing input connections precisely where they are needed.
Specifications
| Frame rate | 24, 25, or 30 fps |
| Video output | 1 DTP 230 output |
| Chroma sampling | 4:4:4 or 4:2:2 |
| Colour bit depth | 8 bits per color |
| Signal type | DVI 1.0, HDMI 1.4, HDCP 1.4 |
| Max. video data rate | 10.2 Gbps (3.4 Gbps per color) , HDMI6.75 Gbps (2.25 Gbps per color) - VGA |
| Resolution range | Up to 1920x1200 or 1080p @ 60 Hz; 8-bit color depth 2048x1080 (2K) @ 60 Hz, 4K (4096x2160) @ 30 Hz or 4K UHD (3840 x 2160) @ 30 Hz; 8-bit color |
| Connector type | 1 female RJ-45 per unit |
| Signal transmission distance | 1080p @ 60 Hz - Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable,2048x1080 (2K) @ 60 Hz - Up to 330' (100 m) using STP cable or XTP DTP 24 cable, 4K/UHD @ 30 Hz - Up to 330' (100 m) using STP cable or XTP DTP 24 cable |
| Video input | 1 female HDMI type A , 1 female 15-pin HD (RGB) |
| Country of origin | USA |
| Brand | Extron |
