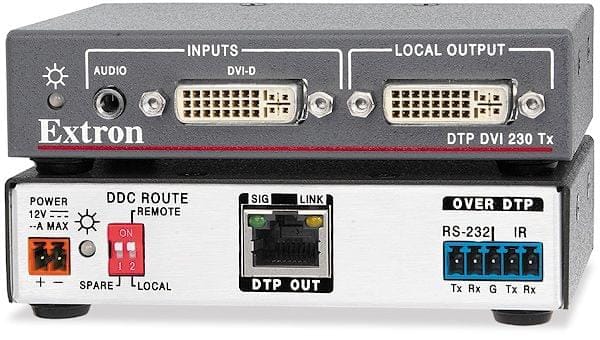

5f50b8d46d2430efb19b4020 Extron DTP Transmitter for DVI 230 https://cdn2.storehippo.com/s/5ee6a1afa31c3e1f1f5f56d0/5f50b8d66d2430efb19b4060/webp/extron-dtp-230-transmitter-for-dvi.jpg

Extron DTP DVI 4K 230 Tx is a transmitter for sending DVI-D video, audio, and bidirectional RS?232 and IR signals up to 230 feet (70 meters) over a shielded CATx cable to Extron DTP ?enabled products. It provides an economical and effective means for extending single link DVI-D or HDMI signals. In addition, the DTP DVI 4K 230 Tx accepts analog stereo audio signals for simultaneous transmission over the same shielded twisted pair cable. It supports video signals at resolutions up to 4K. The transmitter is equipped with a buffered DVI loop-through output to support a local computer monitor. The compact enclosure size and remote power capability make the DTP DVI 4K 230 Tx ideal for discreet placement in lecterns, beneath tables, or wherever needed to meet application requirements.

DTP DVI 4K 230 Tx
in stockINR 48000
Extron
1 5
Extron DTP Transmitter for DVI 230

Extron DTP Transmitter for DVI 230

₹48,000




Features
  • Transmits single link DVI-D plus control and analog audio up to 230 feet (70 meters) over a shielded CATx cable
  • Supports computer and video resolutions up to 4K
  • Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance

Description of product

Extron DTP DVI 4K 230 Tx is a transmitter for sending DVI-D video, audio, and bidirectional RS?232 and IR signals up to 230 feet (70 meters) over a shielded CATx cable to Extron DTP ?enabled products. It provides an economical and effective means for extending single link DVI-D or HDMI signals. In addition, the DTP DVI 4K 230 Tx accepts analog stereo audio signals for simultaneous transmission over the same shielded twisted pair cable. It supports video signals at resolutions up to 4K. The transmitter is equipped with a buffered DVI loop-through output to support a local computer monitor. The compact enclosure size and remote power capability make the DTP DVI 4K 230 Tx ideal for discreet placement in lecterns, beneath tables, or wherever needed to meet application requirements.

Specifications

Frame rate24, 25, 30, 50, or 60 fps
Chroma sampling4:4:4, 4:2:2, or 4:2:0
Colour bit depth8 bits per color
Signal typeHDMI 1.4, HDCP 2.3
Max. video data rate10.2 Gbps (3.4 Gbps per color)
Resolution rangeUp to 2560x1600* @ 60 Hz or 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz, 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling
Connector type1 single link DVI-D (or HDMI*) input 1 single link DVI-D (or HDMI*) local loop-through
Signal transmission distance1080p @ 60 Hz - Up to 230' (70 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable, 2560x1600 @ 60 Hz - Up to 130' (40 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable, 4K/UHD @ 30Hz and 60 Hz - Up to 130' (40 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable
Country of OriginUSA
BrandExtron
