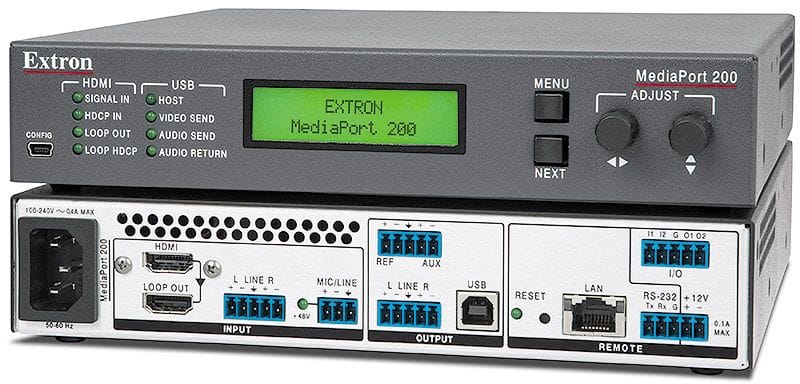

Extron MediaPort 200

Extron MediaPort 200

Warranty: One-Year Manufacturer Warranty from the date of invoice,Conditions apply




Features
  • Seamlessly integrates pro AV sources or systems into software codec applications
  • USB 2.0 device connection uses generic USB drivers for universal compatibility
  • Video scaling provides USB output from 320x180 to 1080p/15 to match common software codec requirements

Description of product

Extron MediaPort 200 is an HDMI to USB bridge for integrating pro AV sources or systems with software codec conferencing applications. It works seamlessly with a computer using generic USB video and audio drivers. The MediaPort features an HDMI input with HDCP-compliant loop through, accepts signals up to 1920x1200, and scales video to a USB 2.0 output. Audio features include program and mic inputs, HDMI audio de embedding, and USB bidirectional audio, plus AEC reference and line level outputs. The MediaPort 200 also includes DSP with EQ, filters, mixing, dynamics, and ducking. This allows the MediaPort 200 to serve as a complete soft codec interface, with the added flexibility of integrating into larger hardware codec or DSP systems. The MediaPort 200 enables versatile integration of conferencing computers into pro AV designs.

Specifications

Video output1 female USB type B
Resolution range640x480 through 1600x1200, 1920x1200 (with reduced blanking), 480i, 576i, 480p, 720p, 1080i, and 1080p
Video input1 female HDMI 1 female HDMI loop-through
Output Scaled Resolution320x180, 320x240, 424x240, 640x360, 640x480, 848x480, 960x540, 720p, 1080p
BrandExtron
