Extron SMP 111

Extron SMP 111

Warranty: One-Year Manufacturer Warranty from the date of invoice,Conditions apply

  • Process live, high resolution HDMI video and audio with metadata
  • ecord and stream simultaneously
  • High quality scaling with aspect ratio control, size, and position

Description of product

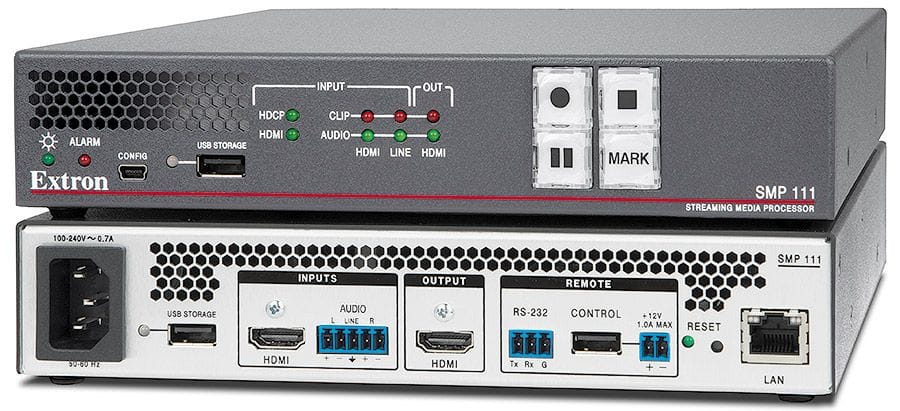

Extron SMP 111 is a high-performance recording and streaming processor for capturing and distributing AV sources and presentations as live streaming and recorded media. The SMP 111 accepts an HDMI signal with embedded audio and an analog audio signal. Extron high performance scaling and flexible signal processing enable superior display of content of varying resolutions from computers and HDTV sources. The SMP 111 supports extensive streaming capabilities. It can record and stream simultaneously, with independent resolutions and bit rates, using a range of transport protocols and session management options. Recording with the SMP 111 provides easy capture of live HDMI signals to an internal flash drive and external USB drives. Requiring no licensing fees, the SMP 111 is a cost-effective solution for streaming and recording content.


Video Input Signal type1 HDMI digital video (HDCP content not supported)
Video Input Connectors type1 female HDMI type A
Video Input Resolution range480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 640x480 to 1920x1200
Digital processing4:2:2, 8-bits per color
CompressionH.264/AVC (ITU H.264, ISO/IEC 14496-10) 4:2:0, 8-bit color,Encoding profiles: High, Main, Baseline; Encoding levels: 4.1, 4.0, 3.2, 3.1, 3.0; configurable GOP
Bit rate200 kbps to 10 Mbps
Video output Signal type1 H.264/AVC digital video over Ethernet 1 HDMI digital video
Video output Connector type1 female RJ-45 (streaming) 1 female HDMI type A
Video output Scaled resolutionHDMI output/record: 480p, 720p, 1080p, 512x288, 1024x768, 1280x1024 Stream: 480p, 720p, 1080p, 512x288, 1024x768, 1280x1024
Video output Frame rateUp to 30 fps for all output rates
File system for USB storageFAT32, NTFS, VFAT long file name extensions, EXT2, EXT3, EXT4
File transfer protocolsFTP, SFTP, CIFS
Resolution480p, 720p, 1080p, 512x288, 1024x768, 1280x1024
Internal storage capacity32 GB SDHC
Communication ProtocolsStreaming , Pull: RTP/RTCP (RFC 3550), RTSP (RFC 2326), Interleaved RTSP (RTP/RTSP), RTP/RTSP tunneled through HTTP unicast or multicast, Push: MPEG2-TS/UDP* (ISO/IEC 13818-1), MPEG2-TS/RTP* (RFC 2250, IPTV?ID-0087, ETSI TS 102 034), Direct RTP (RFC 3984), SAP (RFC2974), SDP (RFC4566), unicast or multicast, RTMPTransport TCP, UDP, multicast IGMPv3 (RFC 3376) or unicast
Country of originUSA
