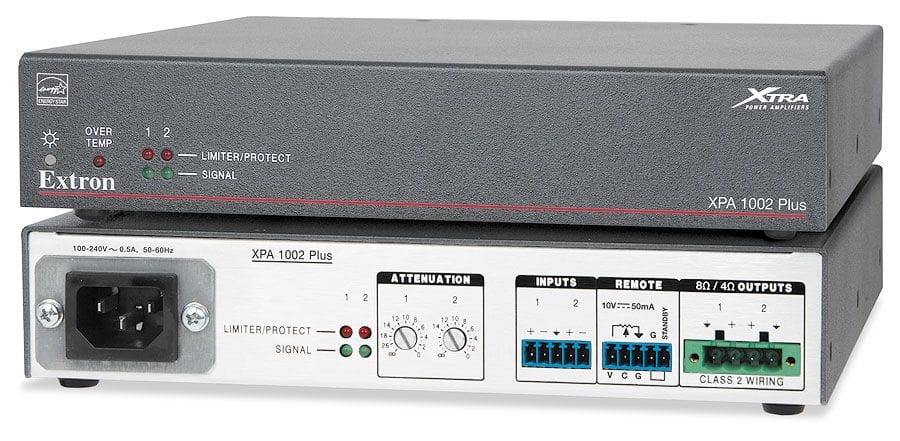

Extron XTRA Series XPA 1002 is a half rack 1U, convection cooled power amplifier delivering two channels of 100 watts per channel. This series includes low and high impedance versions to cover a variety of application needs. The XPA 1002 is an ENERGY STAR qualified amplifier with an Extron exclusive, highly efficient, advanced Class D amplifier design. It also features patented CDRS - Class D Ripple Suppression technology that provides a smooth, clean audio waveform and an improvement in signal fidelity over conventional Class D amplifiers. The XPA 1002 is housed in a half rack width metal enclosure, conserving rack space and weighing only 2.5 lbs (1.1 kg). The Extron exclusive, high efficiency design generates very little heat and allows the amplifier to be convection cooled.

XPA 1002 Plus
in stock INR
Extron
1 1
Extron XPA 1002 Plus

Extron XPA 1002 Plus

Warranty: One-Year Manufacturer Warranty from the date of invoice,Conditions apply




Features
  • Professional grade signal-to-noise and THD+N performance
  • Extron Patented CDRS - Class D Ripple Suppression
  • ENERGY STAR qualified amplifier

Description of product

Extron XTRA Series XPA 1002 is a half rack 1U, convection cooled power amplifier delivering two channels of 100 watts per channel. This series includes low and high impedance versions to cover a variety of application needs. The XPA 1002 is an ENERGY STAR qualified amplifier with an Extron exclusive, highly efficient, advanced Class D amplifier design. It also features patented CDRS - Class D Ripple Suppression technology that provides a smooth, clean audio waveform and an improvement in signal fidelity over conventional Class D amplifiers. The XPA 1002 is housed in a half rack width metal enclosure, conserving rack space and weighing only 2.5 lbs (1.1 kg). The Extron exclusive, high efficiency design generates very little heat and allows the amplifier to be convection cooled.

Specifications

Audio Voltage Gain 23x (27dB)
Audio Stereo channel separation >75 dB @ 1 kHz
Audio CMRR 75 dB @ 1 kHz (typical)
Audio Input Signal type 1 stereo or 2 mono, balanced/unbalanced
Audio Input Connectors (1) 3.5 mm captive screw connector, 5 pole
Audio Output Signal type 1 stereo, 4 or 8 ohm direct
Audio Output Connectors (1) 5 mm screw lock captive screw connector, 4 pole
County of origin USA
Brand Extron
