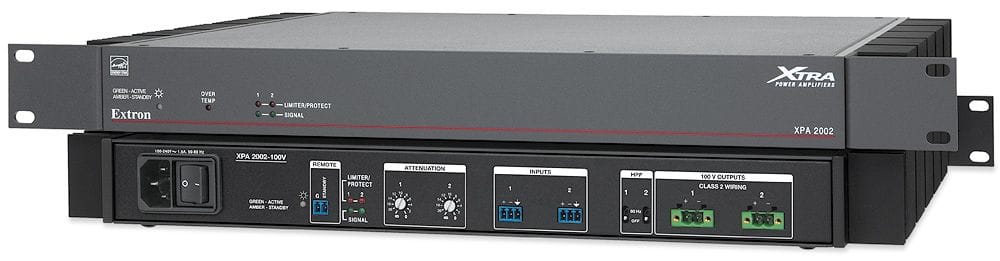

Extron XPA 2002-100V

Extron XPA 2002-100V

Warranty: One-Year Manufacturer Warranty from the date of invoice,Conditions apply

  • Professional grade signal-to-noise and THD+N performance
  • Extron Patented CDRS - Class D Ripple Suppression
  • ENERGY STAR qualified amplifier

Description of product

Extron XTRA Series XPA 2002 is a 1U, convection-cooled power amplifier delivering two channels of 200 watts rms for high impedance applications. This professional grade amplifier features a 100 dB signal-to-noise ratio with 0.1% THD+N. The XPA 2002 is an ENERGY STAR qualified amplifier with an Extron exclusive, highly efficient, advanced Class D amplifier design. It also features patented CDRS - Class D Ripple Suppression technology that provides a smooth, clean audio waveform and an improvement in signal fidelity over conventional Class D amplifiers. The XPA 2002 is half the size of comparable amplifiers, conserving rack space and weighing only 9 lbs (4 kg). The Extron exclusive, high efficiency design generates very little heat and allows the amplifier to be convection cooled.


Audio Voltage Gain 81x (38 dB)
Audio Stereo channel separation 75 dB @ 1 kHz (typical)
Audio CMRR 75 dB @ 1 kHz (typical)
Audio Input Signal type 2 balanced/unbalanced
Audio Input Connectors (2) 3.5 mm captive screw connectors, 3 pole
Audio Output Signal type 2 channels, 100 V
Audio Output Connectors (2) 5 mm screw lock captive screw connectors, 2 pole
Country of origin USA
Brand Extron
