Extron XPA 2003C-100V

Extron XPA 2003C-100V

Warranty: One-Year Manufacturer Warranty from the date of invoice,Conditions apply

  • Professional grade signal-to-noise and THD+N performance
  • Extron Patented CDRS - Class D Ripple Suppression
  • ENERGY STAR qualified amplifier

Description of product

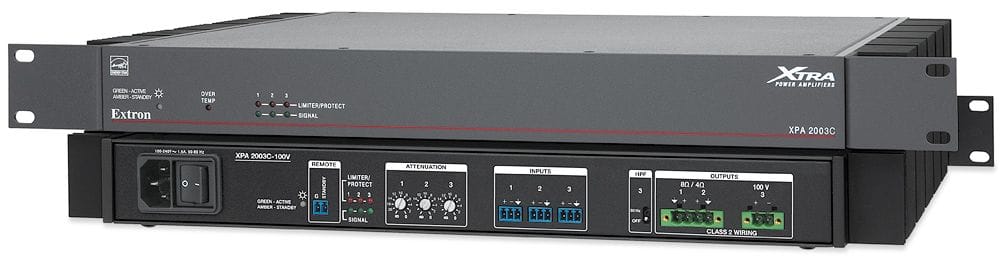

Extron XTRA Series XPA 2003C is a 1U, convection-cooled, three channel power amplifiers delivering two channels of 200 watts into 4 ohms, plus 200 watts at 70 volts or 100 volts. This professional grade amplifier features a 100-dB signal-to-noise ratio with 0.1% THD+N. The XPA 2003C is an ENERGY STAR qualified amplifier with an Extron exclusive, highly efficient, advanced Class D amplifier design. It also features patented CDRS - Class D Ripple Suppression technology that provides a smooth, clean audio waveform and an improvement in signal fidelity over conventional Class D amplifiers. This unique amplifier conserves rack space and weighs only 9 lbs (4 kg). The Extron exclusive, high efficiency design generates very little heat and allows the amplifier to be convection cooled.


Audio Voltage Gain Channel 1&2 - 23x (27 dB) / Channel 3 - 81x (38 dB)
Audio Stereo channel separation 75 dB @ 1 kHz (typical)
Audio CMRR 75 dB @ 1 kHz (typical)
Audio Input Signal type 3 balanced/unbalanced
Audio Input Connectors (3) 3.5 mm captive screw connectors, 3 pole
Audio Output Signal type 2 channels, 4 or 8 ohms 1 channel, 100 V
Audio Output Connectors (1) 5 mm screw lock captive screw connector, 4 pole (1) 5 mm screw lock captive screw connector, 2 pole
Country of origin USA
Brand Extron
