Extron XPA 2004

Extron XPA 2004

Warranty: One-Year Manufacturer Warranty from the date of invoice,Conditions apply

  • Professional grade signal-to-noise and THD+N performance
  • Extron Patented CDRS - Class D Ripple Suppression
  • ENERGY STAR qualified amplifier

Description of product

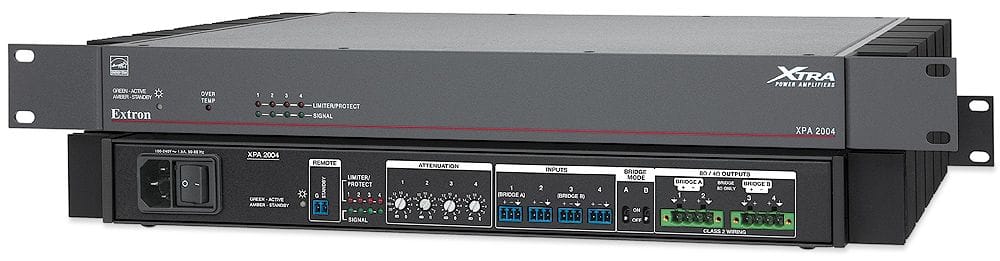

Extron XTRA Series XPA 2004 is a 1U, convection cooled power amplifier delivering four channels of 200 watts into 4 ohms or 100 watts into 8 ohms. This professional grade amplifier features a 100 dB signal-to-noise ratio with 0.1% THD+N. The XPA 2004 is an ENERGY STAR qualified amplifier with an Extron exclusive, highly efficient, advanced Class D amplifier design. It also features patented CDRS - Class D Ripple Suppression technology that provides a smooth, clean audio waveform and an improvement in signal fidelity over conventional Class D amplifiers. The XPA 2004 is half the size of comparable amplifiers, conserving rack space and weighing only 9 lbs (4 kg). The Extron exclusive, high efficiency design generates very little heat and allows the amplifier to be convection cooled.


Audio Voltage Gain23x (27 dB)
Audio Stereo channel separation75 dB @ 1 kHz (typical)
Audio CMRR75 dB @ 1 kHz (typical)
Audio Input Signal type4 balanced/unbalanced
Audio Input Connectors(4) 3.5 mm captive screw connectors, 3 pole
Audio Output Signal type4 channels, 4 or 8 ohms; or 2 bridged mono, 8 ohms
Audio Output Connectors(2) 5 mm screw lock captive screw connectors, 4 pole
Country of originUSA
