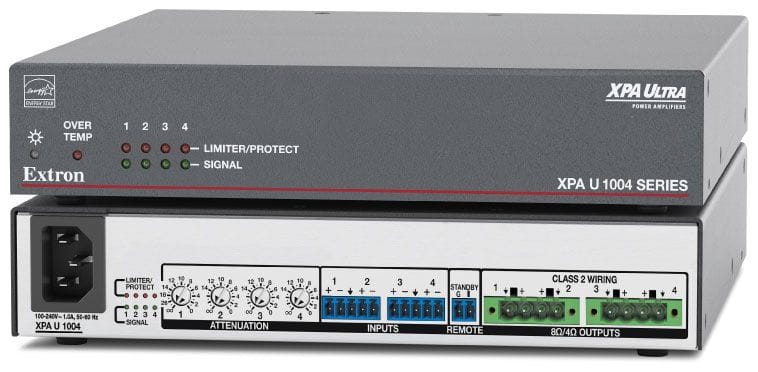

5f50d59367625b25ef79f323 Extron XPA U 1004 https://www.origindigistore.in/s/5ee6a1afa31c3e1f1f5f56d0/5f50d59667625b25ef79f3c4/xpa-u-1004.jpg

Extron XPA U 1004 is an ENERGY STAR qualified audio power amplifier delivering four 100 watt channels in a half rack, 1U, convection cooled, plenum rated enclosure that includes rack mount hardware. The XPA U 1004 delivers 100 watts into 8 or 4 ohms while the XPA U 1004-70V delivers 100 watts into 70 volt systems and the XPA U 1004-100V delivers 100 watts into 100 volt systems. Offering unprecedented channel density, the XPA U 1004 Series provides the ability to install units without using rack spaces for ventilation, conserving precious rack space. It features a highly efficient advanced Class D amplifier design with power factor correction, ultra low inrush current, defeatable auto standby with fast wake up, and our patented CDRS Class D Ripple Suppression.

XPA U 1004
in stockINR
Extron
1 1
Extron XPA U 1004

Extron XPA U 1004

Warranty: One-Year Manufacturer Warranty from the date of invoice,Conditions apply




Features
  • Professional grade signal-to-noise and THD+N performance
  • Extron Patented CDRS - Class D Ripple Suppression
  • ENERGY STAR qualified amplifier

Description of product

Extron XPA U 1004 is an ENERGY STAR qualified audio power amplifier delivering four 100 watt channels in a half rack, 1U, convection cooled, plenum rated enclosure that includes rack mount hardware. The XPA U 1004 delivers 100 watts into 8 or 4 ohms while the XPA U 1004-70V delivers 100 watts into 70 volt systems and the XPA U 1004-100V delivers 100 watts into 100 volt systems. Offering unprecedented channel density, the XPA U 1004 Series provides the ability to install units without using rack spaces for ventilation, conserving precious rack space. It features a highly efficient advanced Class D amplifier design with power factor correction, ultra low inrush current, defeatable auto standby with fast wake up, and our patented CDRS Class D Ripple Suppression.

Specifications

Audio Voltage GainXPA U 1004 23x (27 dB) XPA U 1004-70V 57x (35 dB) XPA U 1004-100V 81x (38 dB)
Audio Stereo channel separation75 dB @ 1 kHz (typical)
Audio CMRR75 dB @ 1 kHz (typical)
Audio Input Signal type4 balanced/unbalanced
Audio Input Connectors(2) 3.5 mm captive screw connector, 5 pole
Audio Output Signal typeXPA U 1004 4 channels, 4 or 8 ohms XPA U 1004-70V 4 channels, 70V XPA U 1004-100V 4 channels, 100V
Audio Output Connectors(2) 5 mm screw lock captive screw connector, 4-pole
Country of originUSA
BrandExtron
