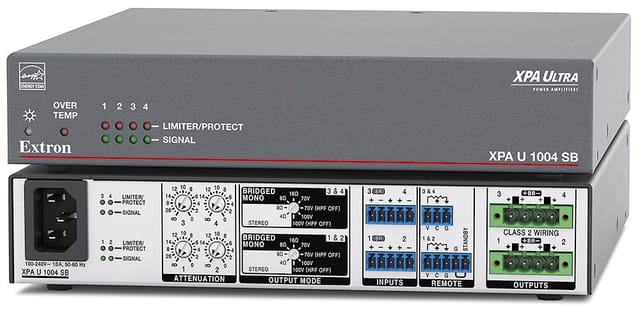

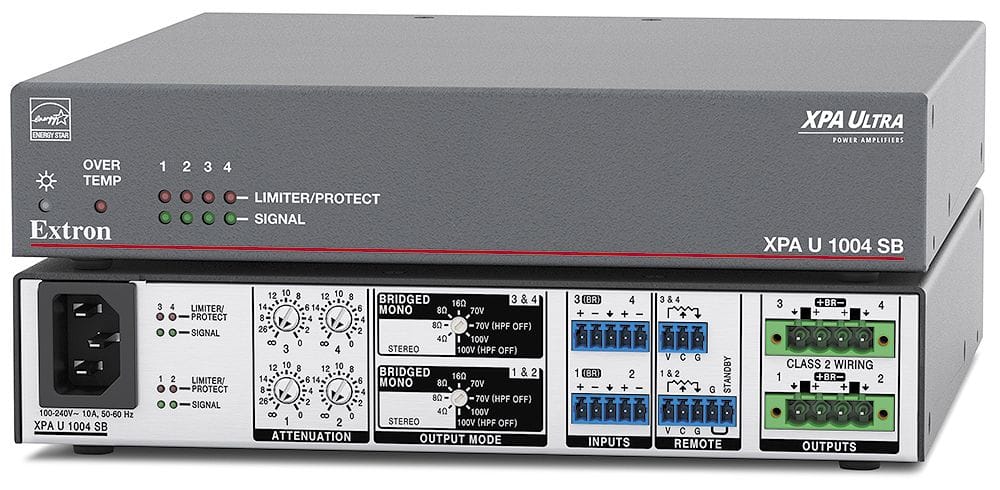

Extron XPA U 1004 SB

Extron XPA U 1004 SB

₹113,050   (38% OFF)
Warranty: One-Year Manufacturer Warranty from the date of invoice,Conditions apply

  • Convection cooled, fanless operation - can be stacked without extra rack space for ventilation
  • Extron Patented CDRS - Class D Ripple Suppression
  • ENERGY STAR qualified amplifier

Description of product

Extron XPA U 1004 SB is an ENERGY STAR qualified four channel audio power amplifiers with flexible channel pairs that can drive 8-ohm, 4 ohm, 70 volt, or 100 volt loads. The individually bridgeable pairs can deliver two 100-watt channels into low impedance systems or one 200-watt channel into low or high impedance systems. A rotary switch on the rear panel makes it quick and easy to select output mode. The convection cooled, plenum rated enclosure of the XPA U 1004 SB does not require empty rack spaces for ventilation and includes rack mount hardware. It features a highly efficient advanced Class D amplifier design with defeatable auto standby, fast wake up from standby, and our patented CDRS Class D Ripple Suppression. XPA Ultra SB models also offer remote volume and mute control with Extron VCM, VC or select MediaLink controllers.


Audio Voltage GainStereo mode (8 ohm) Stereo mode (4 ohm) Bridged mono mode (16 ohm) Bridged mono mode (8 ohm) Bridged mono mode (70V) Bridged mono mode (100V)
Audio Stereo channel separation75 dB @ 1 kHz (typical)
Audio CMRR75 dB @ 1 kHz (typical)
Audio Input Signal type4 balanced/unbalanced
Audio Input Connectors(2) 5-pin 3.5mm captive connector
Audio Output Signal type4 channel, 8 ohms or 4 ohms; or 2 bridged mono, 8 ohms, 16 ohms, 70V or 100V
Audio Output Connectors(2) 4 pole 5mm screw lock captive screw connectors
Country of originUSA
