5f50d59474b1c325a7e5ab36 Extron XPA U 1004C https://cdn2.storehippo.com/s/5ee6a1afa31c3e1f1f5f56d0/5f50d59874b1c325a7e5ab9e/webp/extron-xpa-u-1004c-1.jpg

Extron XPA U 1004C is an ENERGY STAR qualified audio power amplifier delivering four 100-watt channels in a half rack, 1U, convection cooled, plenum rated enclosure that includes rack mount hardware. The XPA U 1004C-70V simultaneously delivers 100 watts into two channels at 8 or 4 ohms and 100 watts into two channels at 70 volts while the XPA U 1004C-100V delivers 100 watts into two channels at 8 or 4 ohms and 100 watts into two channels at 100 volts. The XPA U 1004C offers unprecedented channel density and the ability to install units without using rack spaces for ventilation, conserving precious rack space. It features a highly efficient advanced Class D amplifier design with power factor correction, ultra-low inrush current, defeatable auto standby with fast wake up, and our patented CDRS Class D Ripple Suppression.

XPA U 1004C-70V
in stockINR 70656
Extron
1 1

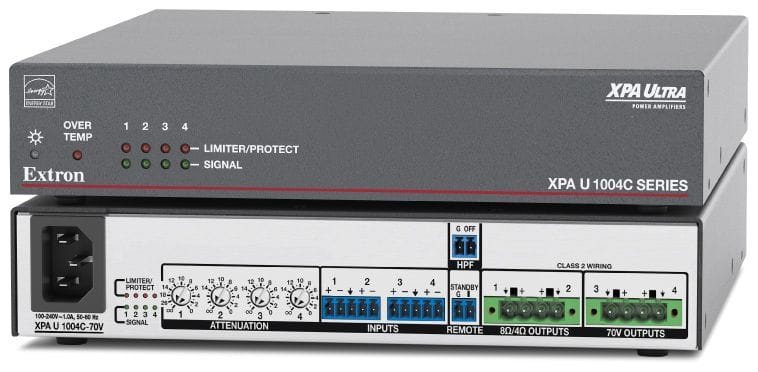

Extron XPA U 1004C

Extron XPA U 1004C

₹70,656
₹113,050   (38% OFF)
Warranty: One-Year Manufacturer Warranty from the date of invoice,Conditions apply




Features
  • Convection cooled, fanless operation - can be stacked without extra rack space for ventilation
  • Extron Patented CDRS - Class D Ripple Suppression
  • ENERGY STAR qualified amplifier

Description of product

Extron XPA U 1004C is an ENERGY STAR qualified audio power amplifier delivering four 100-watt channels in a half rack, 1U, convection cooled, plenum rated enclosure that includes rack mount hardware. The XPA U 1004C-70V simultaneously delivers 100 watts into two channels at 8 or 4 ohms and 100 watts into two channels at 70 volts while the XPA U 1004C-100V delivers 100 watts into two channels at 8 or 4 ohms and 100 watts into two channels at 100 volts. The XPA U 1004C offers unprecedented channel density and the ability to install units without using rack spaces for ventilation, conserving precious rack space. It features a highly efficient advanced Class D amplifier design with power factor correction, ultra-low inrush current, defeatable auto standby with fast wake up, and our patented CDRS Class D Ripple Suppression.

Specifications

Audio Voltage GainChannels 1 and 2 - 23x (27 dB) Channels 3 and 4 XPA U 1004C-70V - 57x (35 dB) XPA U 1004C-100V - 81x (38 dB)
Audio Stereo channel separation75 dB @ 1 kHz (typical)
Audio CMRR75 dB @ 1 kHz (typical)
Audio Input Signal type4 balanced/unbalanced
Audio Input Connectors(2) 3.5 mm captive screw connector, 5-pole
Audio Output Signal typeXPA U 1004C-70V - 4 channels, 2 low impedance and 2 high impedance 70V XPA U 1004C-100V - 4 channels, 2 low impedance and 2 high impedance 100V
Audio Output Connectors(2) 5 mm screw-lock captive screw connector, 4-pole
Country of originUSA
BrandExtron
