Extron XPA U 758

Extron XPA U 758

Warranty: One-Year Manufacturer Warranty from the date of invoice,Conditions apply

  • Convection cooled, fanless operation - can be stacked without extra rack space for ventilation
  • Extron Patented CDRS - Class D Ripple Suppression
  • ENERGY STAR qualified amplifier

Description of product

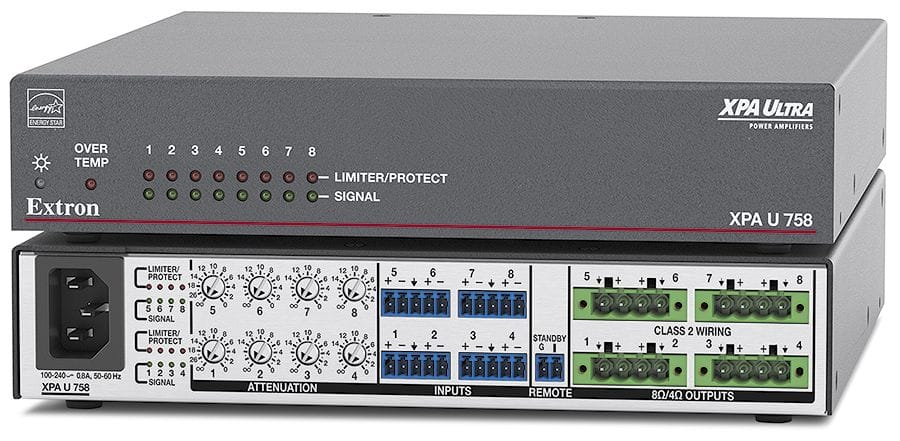

Extron XPA U 758 is an ENERGY STAR qualified audio power amplifier delivering eight 75 watt channels in a half rack, 1U, convection cooled, plenum rated enclosure that includes rack mount hardware. The XPA U 758 offers unprecedented power and channel density with the ability to install units without using rack spaces for ventilation, conserving precious rack space. It features a highly efficient advanced Class D amplifier design with power factor correction, ultra low inrush current, defeatable auto standby with fast wake up, and our patented CDRS Class D Ripple Suppression.


Audio Voltage Gain20x (26 dB)
Audio Stereo channel separation75 dB @ 1 kHz (typical)
Audio CMRR75 dB @ 1 kHz (typical)
Audio Input Signal type8 balanced/unbalanced
Audio Input Connectors(4) 3.5 mm captive screw connector, 5-pole
Audio Output Signal type8 channels, 4 or 8 ohms
Audio Output Connectors(4) 5 mm screw-lock captive screw connector, 4-pole
Country of originUSA
