60e3eb27b4d1b0797e3b1542 IFP6530 - ViewBoard® 65'' 4K Interactive Display https://www.origindigistore.in/s/5ee6a1afa31c3e1f1f5f56d0/60e3e0ffeeb05e7944fb4e02/1.png

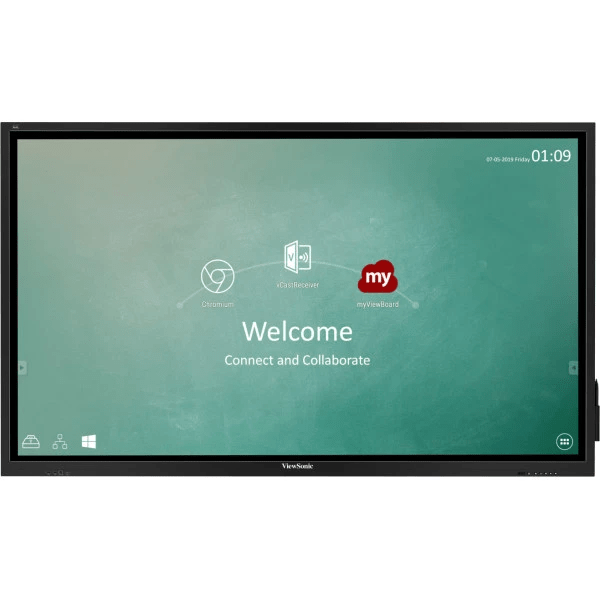

IFP6530 - ViewBoard® 65'' 4K Interactive Display

The ViewBoard® IFP30 series embraces UFT (Ultra Fine Touch) Technology to offer more precise writing and faster processing time than traditional IR panels. 2mm height sensitivity increases writing accuracy while allowing for dual-pen annotation with both 3mm & 8mm diameter pens. It’s also incredibly responsive, distinguishing the different touch diameters among pens, fingers and palms to avoid false strokes. In addition, the IFP30 series is integrated with myViewBoard™ digital whiteboard software to provide collaboration on the go, and is further complimented by native casting including Miracast, Airplay, and Chromecast. Interactive whiteboards are becoming commonplace. The IFP30 series is the solution for schools and workplaces of all sizes and considerations.

SKU - IFP6530
in stockINR
Viewsonic
1 1
IFP6530 - ViewBoard® 65'' 4K Interactive Display

IFP6530 - ViewBoard® 65'' 4K Interactive Display

Warranty: One-Year Manufacturer Warranty from the date of Invoice, Conditions apply




Features
  • UFT (Ultra Fine Touch) Technology
  • MyViewBoard™ digital whiteboard software
  • Dual-pen writing with 3mm/8mm diameter pen tips
  • Ambient Light Sensor
  • ENERGY STAR® certified

Description of product

IFP6530 - ViewBoard® 65'' 4K Interactive Display

The ViewBoard® IFP30 series embraces UFT (Ultra Fine Touch) Technology to offer more precise writing and faster processing time than traditional IR panels. 2mm height sensitivity increases writing accuracy while allowing for dual-pen annotation with both 3mm & 8mm diameter pens. It’s also incredibly responsive, distinguishing the different touch diameters among pens, fingers and palms to avoid false strokes. In addition, the IFP30 series is integrated with myViewBoard™ digital whiteboard software to provide collaboration on the go, and is further complimented by native casting including Miracast, Airplay, and Chromecast. Interactive whiteboards are becoming commonplace. The IFP30 series is the solution for schools and workplaces of all sizes and considerations.

Specifications

Panel Size65"
Type/TechIPS/V-by-one
Display Area (mm)1428.48*803.52mm
Aspect Ratio16:9
Native Resolution4K60hz
Colours10 bits
Brightness360(Typ.), 320(min.)
Contrast Ratio1200:1
Response Time6ms(Type)
Viewing AnglesH = 178, V = 178 typ.
Backlight Life30,000hr(min)
Surface TreatmentHardness: 7H
CostingAG coating
Thickness4mm
Bezel29/29/29/49.7mm(btm.)
OrientationLandscape
ProcessorARM Cortex-A73*2 + Cortex-A53*2 1.5Hz
RAM3GB DDR4
Storage16GB
Type/ TechIR Recognition
Touch Resolution32767W*32767D
Touch Point20 points, 10 writing
InputHDMI: (Front*1, Rear* 2, All ports HDMI2.0), RGB / VGA:1, DisplayPort: DP1.2*1, Audio: PC audio in (3.5 mm)*1, RS232: x1, OPS: 1
OutputHDMI - 1, Audio - 3.5mm, Earphone Out - 1, SPDIF - 1
LANRJ45: *2 (10M/100)
USBType A: USB2.0 *4 (Front:*2 Rear: *2 ); Type B: For touch (Front*1, rear*1)
Speakers15WX2
Camera plate on top for screw-in webcam installationYes
CompatibilityRGB PC/HDMI PC: VGA: 1080p, HDMI: 4K, HDMI: 3840x2160, DisplayPort: 3840x2160
Embedded OSEmbedded OS: OS 8.0, Resolution: 1080p
PowerVoltage: PB model: 100-240VAC +/- 10% Wide Range, Consumption: On:129W(Typ.) Off: <0.5W
ErgonomicsWall Mount (VESA® ): 600x400
Operating ConditionsTemperature (º C): 0°C to 40°C, Humidity: 20% ~ 80% RH Non-Condensing(working)
Dimensions (W x H x D)Physical (inch / mm): [1523.5*919.24*89.2(mm), 59.98*36.19*3.51(inch)], Packaging (inch / mm): [1660*1045*245(mm), 65.4*41.1*9.6(inch)]
WeightNet (lb / kg): 97.4lb/44.2kg, Gross (lb / kg): 126.8lb/57.5kg
Energy Star versionYes
EEI ratingA
Compatible Slot-in PCVPC12 series
BrandViewsonic
