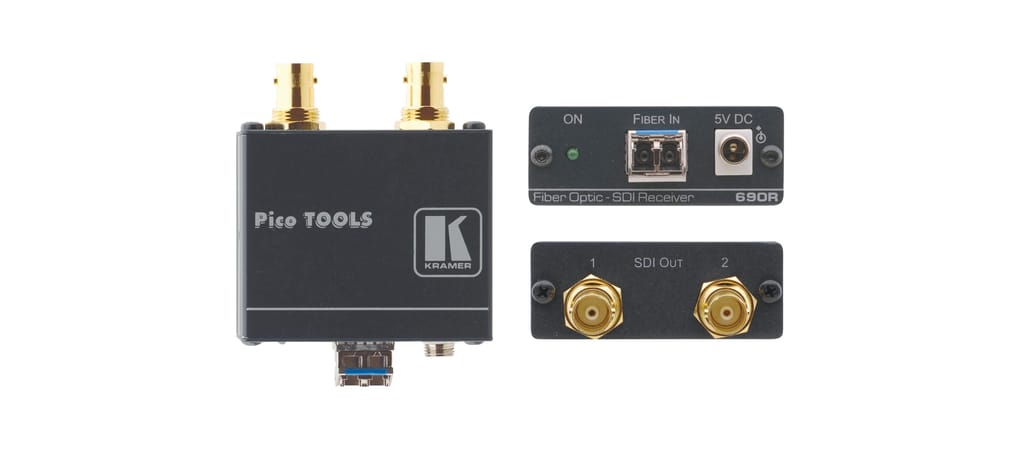

Kramer 690R
Warranty: One-Year Manufacturer Warranty, Conditions apply
Features
- Max. Data Rate — 3Gbps.
- Inputs — 2 single–mode fiber optic on LC connectors.
- Outputs — 2 SDI on BNC connectors.
- Multi–Standard Operation — SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M), 3G HD–SDI (SMPTE 424M).
- Laser Standards Compliance — IEC 60825–1, FDA 21CFR1040; Laser Class 1: Safety of laser products.
- Kramer Equalization & re‑Klocking™ Technology — Rebuilds the digital signal to travel longer distances on the coax cable, 200m (HD–SDI) & 100m (3G HD–SDI).
- System Range — Up to 10km (6.2mi).
Description of product
Kramer 690R
- The 690R is a high−performance fiber optic receiver for SDI video signals up to 3G HD−SDI. The 690T converts two 3G HD−SDI signals to single−mode fiber optic and the 690R receiver converts them back to the two original SDI formats.
- Compatible with the fiber optic matrix VS−88FO.
Specifications
| Brand | Kramer |
