6300bb02efa44a877d32115e Kramer 690T //cdn.storehippo.com/s/5ee6a1afa31c3e1f1f5f56d0/6300bae74282ee870dedf707/webp/690t.jpg

The 690T is a high−performance fiber optic transmitter for SDI video signals up to 3G HD−SDI. The 690T converts two 3G HD−SDI signals to single−mode fiber optic and the 690R receiver converts them back to the two original SDI formats. The unit is compatible with the fiber optic matrix VS−88FO.

SKU-HL1SVHYR_UR
in stockINR
Kramer
1 1

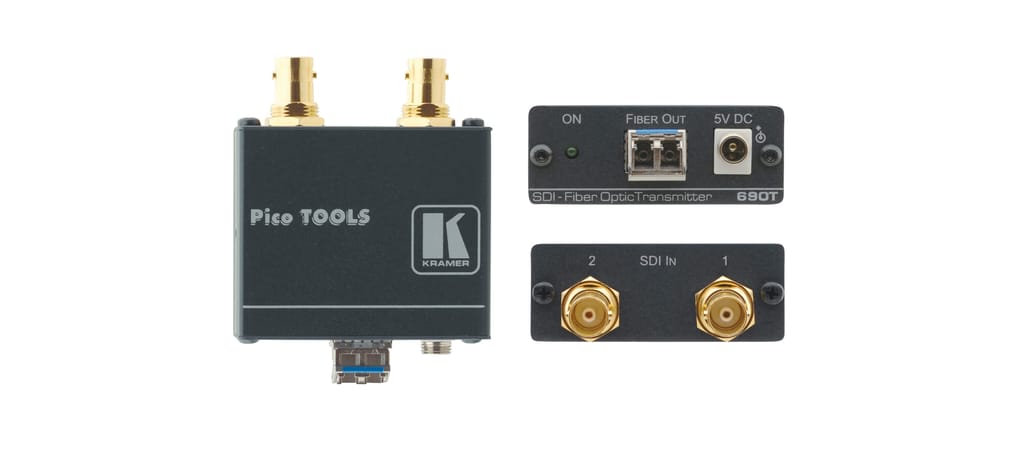

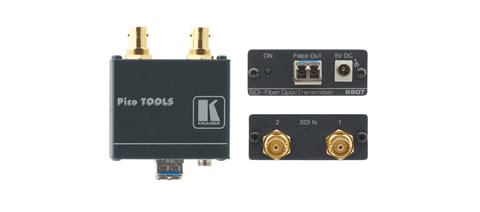

Kramer 690T

Kramer 690T

Warranty: One-Year Manufacturer Warranty, Conditions apply




Features
  • Max. Data Rate — 3Gbps.
  • Inputs — 2 SDI on BNC connectors.
  • Outputs — 2 single–mode fiber optic on LC connectors.
  • HDTV Compatible.
  • Multi–Standard Operation — SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M), 3G HD–SDI (SMPTE 424M).
  • Laser Standards Compliance — IEC 60825–1, FDA 21CFR1040; Laser Class 1: Safety of laser products
  • Kramer Equalization & re‑Klocking™ Technology — Rebuilds the digital signal to travel longer distances on the coax cable, 200m (HD–SDI) & 100m (3G HD–SDI).
  • System Range — Up to 10km (6.2mi).

Description of product

The 690T is a high−performance fiber optic transmitter for SDI video signals up to 3G HD−SDI. The 690T converts two 3G HD−SDI signals to single−mode fiber optic and the 690R receiver converts them back to the two original SDI formats. The unit is compatible with the fiber optic matrix VS−88FO.

Specifications

BrandKramer
