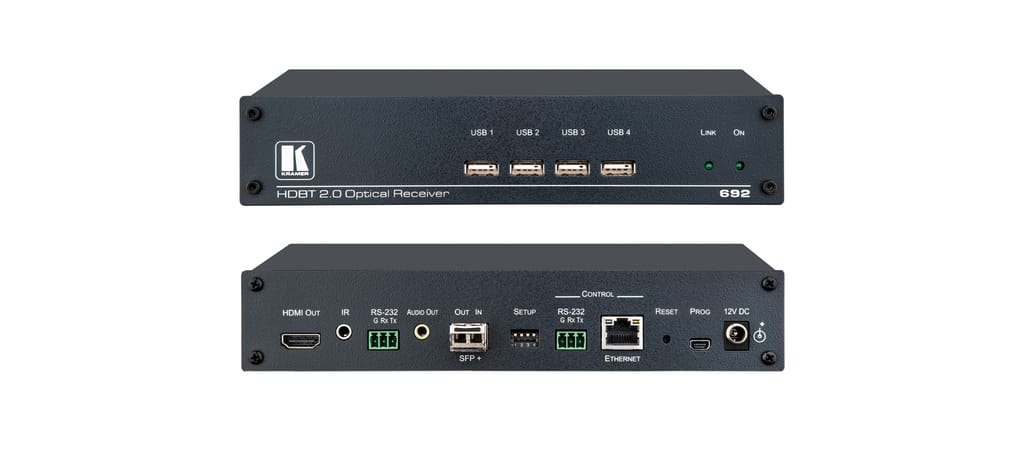

62ff82271090f877a59b8162 Kramer 692 https://www.origindigistore.in/s/5ee6a1afa31c3e1f1f5f56d0/62ff81bc491f6c7843daa258/kramer-692.jpg

692 is a high−performance HDBaseT 2.0 fiber receiver for ultra−reach extension of 4K60Hz (4:2:0) HDMI, USB, Ethernet, RS−232, IR and stereo audio signals over either multi−mode or single−mode fiber optic. 692 converts the HDBaseT 2.0 fiber optics signal received from an extended line transmitter back into 4K60Hz (4:2:0) HDMI, USB 2.0, Ethernet, RS−232, IR and stereo audio output signals.It extends video signals to up to 33km (20.5 miles) over single−mode fiber at up to 4K@60Hz (4:2:0) resolution. 692 includes a multimode OSP+ transceiver, but can be used with a single mode OSP+ transceiver and fiber as well.

  •  High Performance Standard Fiber Extender — HDBaseT 2.0 fiber receiver for providing ultra–reach signals over either multi–mode or single–mode optical fiber infrastructures, using Kramer pluggable OSP SFP+ units. 692 is a standard fiber extender that can be connected to any market–available HDBaseT–compliant extension product.
    Note: To ensure specified performance, support, and warranty of this product, use only Kramer's certified hi–performance OSP SFP+ pluggable optical units.
 SKU-HHIBLBJHJHL
in stock INR
Kramer
1 1
Kramer 692

Kramer 692

Warranty: One-Year Manufacturer Warranty, Conditions apply


Price On Request
Add to Cart Buy Now
Features
  • HDMI Signal Extension — HDCP 1.4 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
  • I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Ethernet Extension — Ethernet interface data flows in both directions allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
  • Bidirectional RS–232 Extension — Serial interface data flows in both directions allowing data transmission and device control.
  • Bidirectional Infrared Extension — IR interface data flows in both directions allowing remote control of peripheral devices located at either end of the extended line.
  • Cost–Effective Maintenance — Status LED indicators for the HDMI input and HDBT output link facilitate easy local troubleshooting. Remote device management via built–in web UI and RS–232 connection enable simple device maintenance. Local and remote firmware upgrade via mini–USB, RS–232 or Ethernet connection and the K–Upload tool ensure lasting, field–proven deployment.
  • Easy Installation — Half 19” 1U rack mountable fan–less enclosure enables side–by–side mounting of 2 units in a 1U rack space.

Description of product

692 is a high−performance HDBaseT 2.0 fiber receiver for ultra−reach extension of 4K60Hz (4:2:0) HDMI, USB, Ethernet, RS−232, IR and stereo audio signals over either multi−mode or single−mode fiber optic. 692 converts the HDBaseT 2.0 fiber optics signal received from an extended line transmitter back into 4K60Hz (4:2:0) HDMI, USB 2.0, Ethernet, RS−232, IR and stereo audio output signals.It extends video signals to up to 33km (20.5 miles) over single−mode fiber at up to 4K@60Hz (4:2:0) resolution. 692 includes a multimode OSP+ transceiver, but can be used with a single mode OSP+ transceiver and fiber as well.

  •  High Performance Standard Fiber Extender — HDBaseT 2.0 fiber receiver for providing ultra–reach signals over either multi–mode or single–mode optical fiber infrastructures, using Kramer pluggable OSP SFP+ units. 692 is a standard fiber extender that can be connected to any market–available HDBaseT–compliant extension product.
    Note: To ensure specified performance, support, and warranty of this product, use only Kramer's certified hi–performance OSP SFP+ pluggable optical units.

Specifications

Brand Kramer
