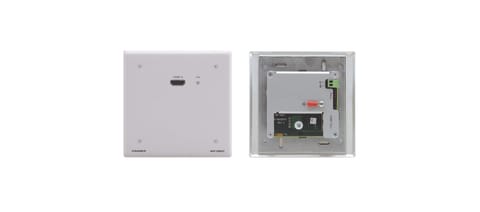

62ff239fa334732bcee51b6a Kramer WP-580T https://www.origindigistore.in/s/5ee6a1afa31c3e1f1f5f56d0/62ff2366e61a822b90abf013/wp-580t1.jpg

The WP−580T is a high−performance, HDBaseT twisted pair wall plate transmitter for 4K@60Hz (4:2:0) HDMI signals. The WP−580T inputs the signals and converts them into an HDBaseT twisted pair signal that it transmits to a WP−580R receiver. The WP–580T(D) model is supplied with a Midway Size 2 gang DECORA® design frame.

  •  Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
  •  HDTV Compatible.
  •  HDCP 2.2 Compliance.
  •  HDBaseT™ Technology.
  •  HDMI Support — Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD, CEC.
  •  3D Pass–Through.
  •  EDID PassThru — Passes EDID signals between the source and display.
  •  2K & 4K Support.
  •  System Range — Up to 70m (230ft).
  •  Cable — For optimum range and performance using HDBaseT™, use Kramer's BC–HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non–Kramer CAT 6 cable may not reach these ranges.
  •  Indicators — Status LEDs for input, output, link and power.
  •  Dimensions — 12.4cm x 3.12cm x 7.9cm (4.88" x  1.29"  x 3.12") US; 15.1cm x 2.96cm x 8.6cm (5.95" x 1.17" x 3.39"), 15.1cm x 2.96cm x 8.0cm (5.95" x 1.17" x 3.15") EU (W, D, H).
 SKU-1KFSJRZ8OKS
in stock INR
Kramer
1 1

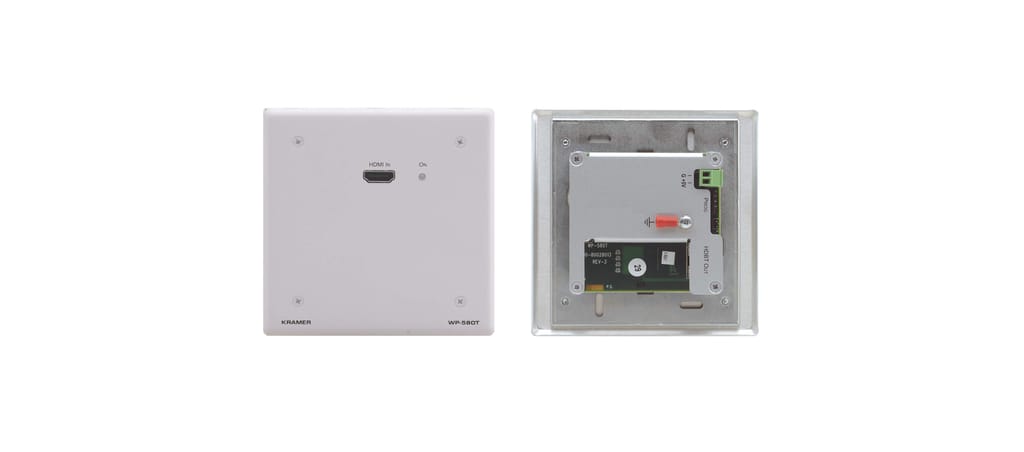

Kramer WP-580T

Kramer WP-580T

Warranty: One-Year Manufacturer Warranty, Conditions apply


Price On Request
Add to Cart Buy Now
Features
  • 4K60 4:2:0 HDMI Wall–Plate Transmitter over Long–Reach HDBaseT
  • Max Data Rate — 10.2Gbps (3.4Gbps per graphic channel)
  • 2K & 4K Support

Description of product

The WP−580T is a high−performance, HDBaseT twisted pair wall plate transmitter for 4K@60Hz (4:2:0) HDMI signals. The WP−580T inputs the signals and converts them into an HDBaseT twisted pair signal that it transmits to a WP−580R receiver. The WP–580T(D) model is supplied with a Midway Size 2 gang DECORA® design frame.

  •  Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
  •  HDTV Compatible.
  •  HDCP 2.2 Compliance.
  •  HDBaseT™ Technology.
  •  HDMI Support — Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD, CEC.
  •  3D Pass–Through.
  •  EDID PassThru — Passes EDID signals between the source and display.
  •  2K & 4K Support.
  •  System Range — Up to 70m (230ft).
  •  Cable — For optimum range and performance using HDBaseT™, use Kramer's BC–HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non–Kramer CAT 6 cable may not reach these ranges.
  •  Indicators — Status LEDs for input, output, link and power.
  •  Dimensions — 12.4cm x 3.12cm x 7.9cm (4.88" x  1.29"  x 3.12") US; 15.1cm x 2.96cm x 8.6cm (5.95" x 1.17" x 3.39"), 15.1cm x 2.96cm x 8.0cm (5.95" x 1.17" x 3.15") EU (W, D, H).

Specifications

Brand Kramer
