6304a466214b228ebcf52d00 Liberty DL-AS31-2H1DP https://www.origindigistore.in/s/5ee6a1afa31c3e1f1f5f56d0/6304a3cb0331f493c765f571/dl-as31-2h1dp.png

The DL-AS31-2H1DP is a multiformat auto-switcher with two HDMI inputs, one DisplayPort with analog audio input, one HDMI output, and one balanced analog audio output. This auto-switcher supports HDMI and DisplayPort video resolutions up to 4Kx2K at 30 Hz and multichannel audio. In addition to passing EDID information from the display, there are multiple built-in EDID settings to simplify an installation. The DL-AS31-2H1DP will de-embed the digital audio from the HDMI output signal, and output it via the balanced analog audio output port.

When in auto-switch mode, the DL-AS31-2H1DP will switch to a signal input as soon as a new source is connected. When the active source is removed, the switcher will select the first source on the lowest numbered input. The DL-AS31-2H1DP may also be controlled via RS232 commands or by contact closures on the rear of the switcher.

SKU--QW6BHQG5VW
in stock INR
Liberty
1 1

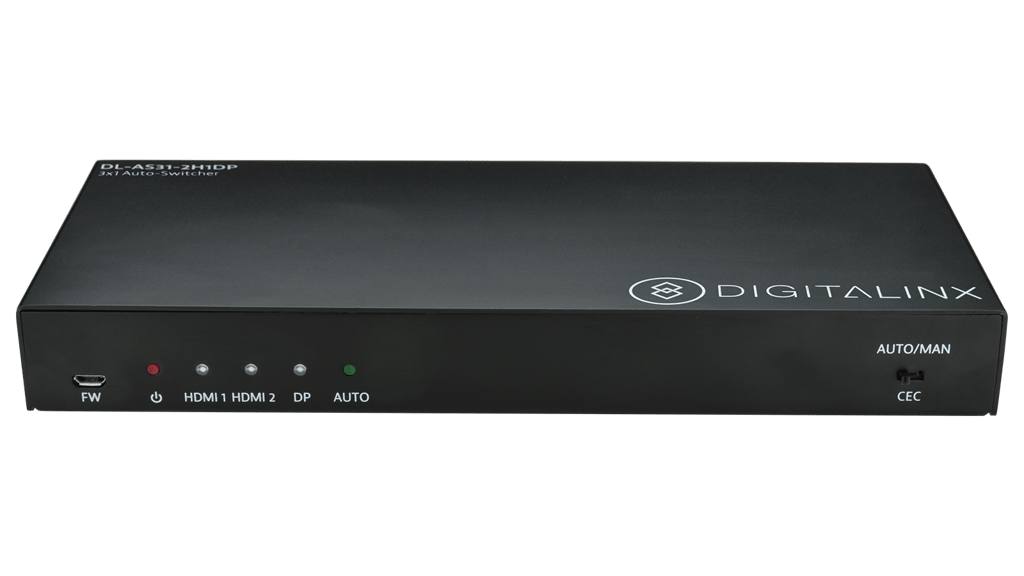

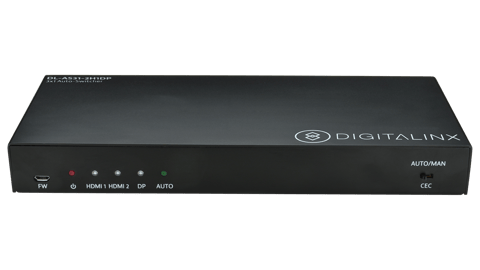

Liberty DL-AS31-2H1DP

Warranty: One-Year Manufacturer Warranty, Conditions apply




Features
  • 2 HDMI & 1 DisplayPort inputs
  • 1 HDMI and stereo audio output
  • HDMI and DP support 1080p and 4K video with stereo audio
  • Built-in EDID settings and EDID pass-through
  • Built-in audio de-embedding
  • Automatic and manual switching via RS232 and contact closures
  • Includes under table mounting ears

Description of product

The DL-AS31-2H1DP is a multiformat auto-switcher with two HDMI inputs, one DisplayPort with analog audio input, one HDMI output, and one balanced analog audio output. This auto-switcher supports HDMI and DisplayPort video resolutions up to 4Kx2K at 30 Hz and multichannel audio. In addition to passing EDID information from the display, there are multiple built-in EDID settings to simplify an installation. The DL-AS31-2H1DP will de-embed the digital audio from the HDMI output signal, and output it via the balanced analog audio output port.

When in auto-switch mode, the DL-AS31-2H1DP will switch to a signal input as soon as a new source is connected. When the active source is removed, the switcher will select the first source on the lowest numbered input. The DL-AS31-2H1DP may also be controlled via RS232 commands or by contact closures on the rear of the switcher.

Specifications

Brand Liberty
