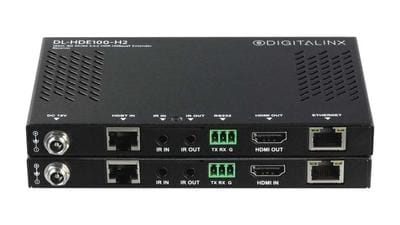

Liberty  DL-HDE100-H2

Description of product

4K60 4:4:4 / HDR 18G 100m HDMI extender set with IR, RS232, Ethernet Pass Through, 2 way flexible PoC

Specifications

Video Compliance HDMI 2.0a, HDCP 2.2, and CEC (Consumer Electronics Control)
Embedded Audio Up to PCM 8 channel, Dolby Atmos, DTS: X, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital and DTS
Maximum Distance 1080p: 100 meters / 330 feet 4K: 70 meters / 230 feet33-55kHz at 5 volts
Bandwidth 18 Gbps
Cable Requirements Solid core F/UTP Category 6 cable or greater with TIA/EIA-568B crimp pattern
Maximum Pixel Clock 600MHz
Resolution Range SMPTE: Up to 4096x2160@60Hz (4:4:4 chroma sub-sampling / 8 bit deep color) VESA: Up to 1920x1200
Country of Origin USA
Brand Liberty
