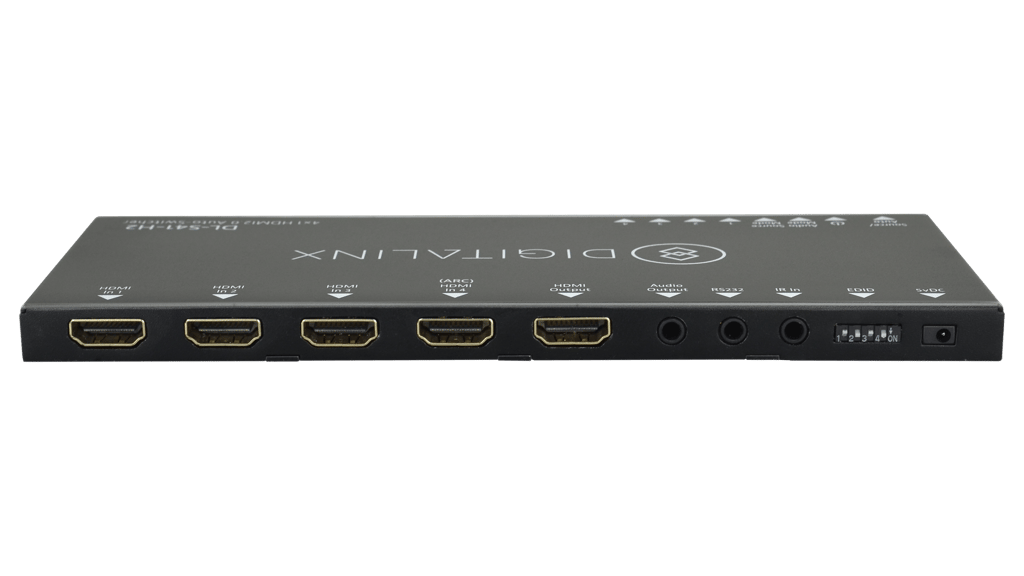

630366af84b25a6cc9c01b99 Liberty DL-S41-H2 //cdn.storehippo.com/s/5ee6a1afa31c3e1f1f5f56d0/6303668351797683b95a5db5/webp/dl-s41-h2_back.png

The DL-S41-H2 is a slimline HDMI 2.0b auto switcher with four HDMI video inputs and one HDMI output. This switcher supports HDMI video resolutions up to 4Kx2K@60Hz 4:4:4, HDR, and multichannel audio. In addition to passing EDID information from the display, there are multiple built-in EDID settings to simplify an installation. The switcher will de-embed digital stereo audio to provide an analog audio source for an existing audio system. The switcher also supports audio return channel (ARC) for transmitting audio back to HDMI input and audio output ports from display device. When in auto-switch mode, the switcher will switch to an HDMI input as soon as a new source is connected. When the active source is removed, the switcher will select the first source on the lowest numbered input. The switcher may also be controlled via RS232, IR with the included remote, or from the source button on the front of the switcher.

SKU-5QZCC8AKP_4
in stockINR
Liberty
1 1
Liberty DL-S41-H2

Liberty DL-S41-H2

Warranty: One-Year Manufacturer Warranty, Conditions apply




Features
  • Auto-switch or manual switch between four HDMI inputs
  • 1) HDMI and 1) 3.5mm TRS audio (ARC & audio de-embedding) output
  • Front panel, IR and RS232 control
  • Supports resolutions up to 4k@60Hz, 4:4:4. 8 bit deep color
  • Supports HDR formats, HDCP 2.2 compliant
  • Supports EDID management
  • Supports CEC pass through control of source / display
  • Super slim design only .5" tall
  • Micro USB firmware update port
  • Included: 5VDC 1A universal power supply with international power adapters

Description of product

The DL-S41-H2 is a slimline HDMI 2.0b auto switcher with four HDMI video inputs and one HDMI output. This switcher supports HDMI video resolutions up to 4Kx2K@60Hz 4:4:4, HDR, and multichannel audio. In addition to passing EDID information from the display, there are multiple built-in EDID settings to simplify an installation. The switcher will de-embed digital stereo audio to provide an analog audio source for an existing audio system. The switcher also supports audio return channel (ARC) for transmitting audio back to HDMI input and audio output ports from display device. When in auto-switch mode, the switcher will switch to an HDMI input as soon as a new source is connected. When the active source is removed, the switcher will select the first source on the lowest numbered input. The switcher may also be controlled via RS232, IR with the included remote, or from the source button on the front of the switcher.

Specifications

BrandLiberty
