CRESTRON  FLEX UC-B140-T

CRESTRON FLEX UC-B140-T

Warranty: One-Year Manufacturer Warranty from the date of invoice,Conditions apply




Features
  • CAMERA inbuilt
  • DSP inbuilt
  • USB Audio In/Out
  • Analog Input,,Analog Input Sensitivity,Analog Output
  • Designed for Microsoft Teams

Description of product

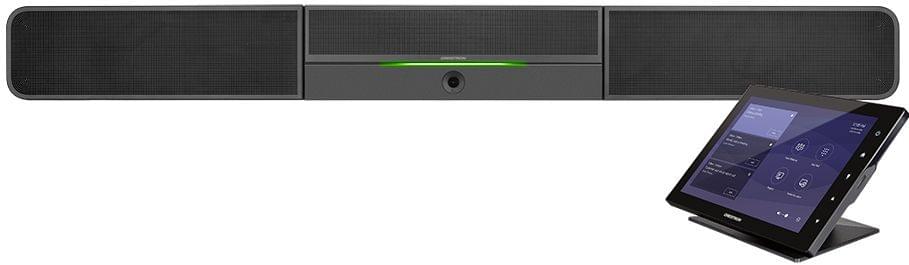

A sleek and stylish soundbar comprising a high‑performance conferencing speakerphone and camera in one stunning front‑of‑room device. Installs cleanly beneath the room display, and interfaces with any computer via USB.

Specifications

Microphone Linear quad‑element far‑field adaptive beamforming microphone array Pickup Range \t15 ft. (4.6m)1 Pickup Angle \t180° Horizontal Frequency Response \t20 Hz to 8 kHz Audio
Tabletop Touch Screen Touch Screen \t10.1 in. (257 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1280 x 800 pixels, displays Microsoft Teams UI plus optional Crestron Smart Graphics® room control UI1 Ethernet \t10/100 Mbps; enterprise grade security and management including IEEE 802.1X, Active Directory® authentication, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), digest access authentication, password login, HTTPS secure provisioning, Crestron XiO Cloud client, IEEE 802.3at compliant Power over Ethernet \tEEE 802.3at compliant PoE or PoE+ PD (Powered Device); - Requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management;- Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP;- Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSEPoE Injector \tA PoE injector is included to power the touch screen if network PoE is not availableConstruction \tPlastic tabletop housing, smooth black finish, edge-to-edge glass with black surround
UC Engine Assembly Mini PC \tIntel NUC Kit NUC8i5BEK Processor \tIntel Core® i5-8259U processor (2.3 GHz with 3.8GHz Turbo, Quad Core, Hyper-thread, 6 MB Cache, 28W TDP) UC Client \tMicrosoft Teams or Skype for Business Software Management Client \tCrestron XiO Cloud Service USB \tUSB 3.0 host supporting USB HID, UAC, and UVC for audio conference soundbar bar, camera, content ingest, and keyboard/mouse devices Content Ingest \tHDMI input via HDMI to USB 3.0 converter (model HD-CONV-USB-200) Display Output \tDisplayPort™ 1.2 via USB Type-C® port, converted to HDMI via converter cable Camera Input Resolution \tHD 1080p @ 30 fps Content Input Resolution \tHD 1080p @ 60 fps Display Output Resolution \tHD 1080p @ 60 fps Power \t19 VDC via external 100-240 VAC, 50/60 Hz adapter (included) Construction \tMetal mounting bracket, black, preassembled with UC Engine and USB to HDMI converter Mounting \tSurface wall mount behind the display device, or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount; the Crestron bracket includes mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate
Audio DSP,USB Audio In/Out,Analog Input,,Analog Input Sensitivity,Analog Output
POWER 500 mA maximum @ 100‑240 VAC, 50/60 Hz,22 W
Speakers Woofers,Passive Radiators,Tweeters, Amplifier Power Frequency Response \t80 Hz to 20 kHz (±3 dB) Effective Output Level \t91 dB SPL @ 1 m, both channels driven at full power
Video USB Camera Input
CONNECTORS Connectors AUDIO IN \t(1) 3.5 mm TRS mini‑phone jack; Unbalanced stereo line‑level audio input; Input Level: 1 Vrms maximum; Input Impedance: 10k Ohms AUDIO OUT \t(1) 3.5 mm TRS mini‑phone jack; Unbalanced stereo line‑level audio output; Output Level: 1 Vrms maximum; Output Impedance: 100 Ohms PC \t(1) USB 3.0 Type‑B connector, female; USB 3.0 device port; Connects to computer; 6 ft (1.83 m) USB 3.0 Type B to Type A cable included CAMERA \t(1) USB 3.0 Type‑A connector, female; USB 3.0 host port; Connects to the internal camera output via a 6 in. (13 cm) USB Type‑C™ to USB 3.0 Type A cable 100‑240V~ 0.5A 50/60Hz \t(1) IEC 60320 C14 main power inlet; Mates with removable power cord, included
CAMERA Model \tHuddly IQ (mounted internally) Image Sensor \t12 megapixel Sony® IMX477 Type 1/2.3 CMOS sensor Lens \tHigh precision, ultra wide angle, six element aspherical glass lens Field of View \t150º diagonal, 120º horizontal, 90º vertical Aperture \tf/2.8 Processor \tIntel® Movidius® Myriad® X VPU with Neural Compute Engine hardware accelerator Pan/Tilt/Zoom \t3x lossless digital zoom, pan, and tilt Autozoom \tGenius Framing automatic lossless digital zoom intelligently frames people in the room Dynamic Light Optimization \tAuto‑adjusts light levels and white balance Noise Reduction \t3D noise reduction, bias compensating spatio‑temporal filtering, wide area chroma filtering, flicker elimination Scaling \tReal‑time scaling, dewarping, and perspective correction People Counting \tDetects and reports the number of people in frame
Country of Origin USA
Brand Crestron
