CRESTRON UC-C160-T

CRESTRON UC-C160-T

Warranty: One-Year Manufacturer Warranty from the date of invoice,Conditions apply




Description of product

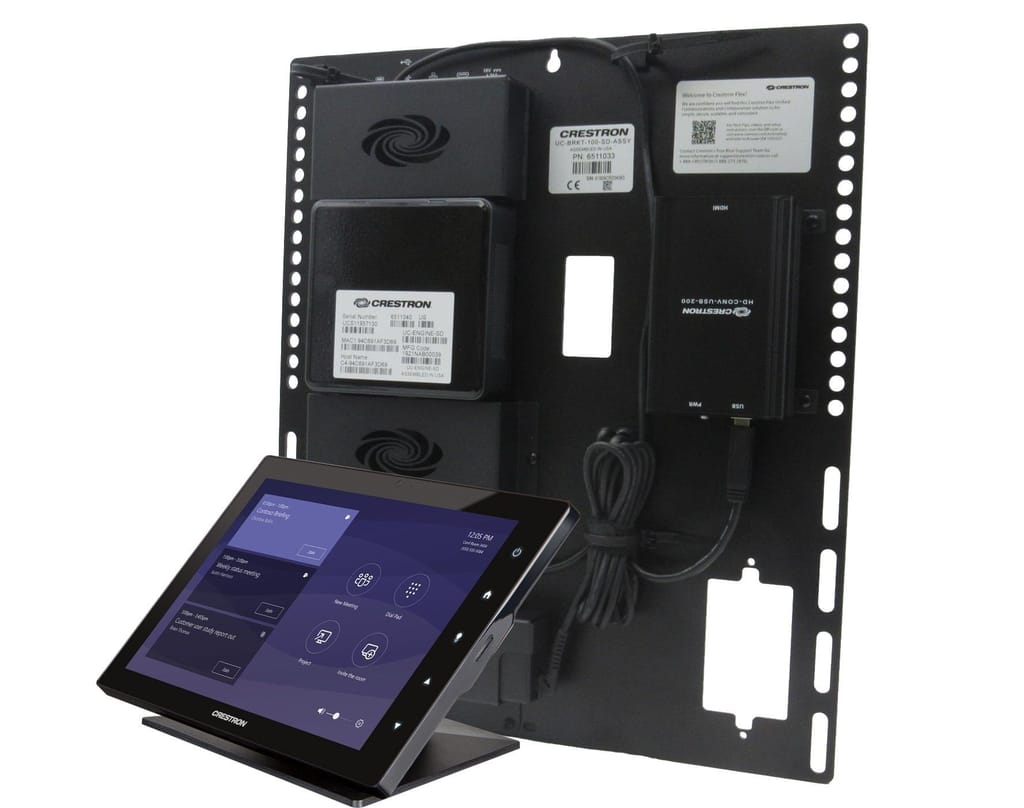

The Crestron Flex UC-C160-T system provides a customizable video conference room solution for use with the Microsoft Teams intelligent communications platform. It supports single or dual video displays, and features the UC Engine Assembly with UC‑ENGINE and 10.1 in. touch screen. The UC-C160-T enables integration with your choice of displays, cameras, speakers, microphones, mixers, switchers, and audio conferencing interface (or speakerphone).

Specifications

Included Components TSW-1060-B-S,TSW-1060-TTK-B-S,UC-BRKT-100-SD-ASSY,CBL-CAT5E-7,PWE-4803RU,CBL-USBC-HD-9,CBL-HD-20
Tabletop Touch Screen Touch Screen \t10.1 in. (257 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1280 x 800 pixels, displays Microsoft Teams UI Ethernet \t10/100 Mbps; enterprise grade security and management including IEEE 802.1X, Active Directory® authentication, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), digest access authentication, password login, HTTPS secure provisioning, Crestron XiO Cloud client, IEEE 802.3at compliant Power over Ethernet \tEEE 802.3at compliant PoE or PoE+ PD (Powered Device); - Requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; - Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP; - Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE PoE Injector \tA PoE injector is included to power the touch screen if network PoE is not available Construction \tPlastic tabletop housing, smooth black finish, edge-to-edge glass with black surround
UC Engine Assembly Mini PC \tIntel NUC Kit NUC8i5BEK Processor \tIntel Core® i5-8259U processor (2.3 GHz with 3.8GHz Turbo, Quad Core, Hyper-thread, 6 MB Cache, 28W TDP) UC Client \tMicrosoft Teams or Skype for Business Software Management Client \tCrestron XiO Cloud Service USB \tUSB 3.0 host supporting USB HID, UAC, and UVC for audio conference soundbar bar, camera, content ingest, and keyboard/mouse devices Content Ingest \tHDMI input via HDMI to USB 3.0 converter (model HD-CONV-USB-200) Display Output \tDisplayPort™ 1.2 via USB Type-C® port, converted to HDMI via converter cable Camera Input Resolution \tHD 1080p @ 30 fps Content Input Resolution \tHD 1080p @ 60 fps Display Output Resolution \tHD 1080p @ 60 fps Power \t19 VDC via external 100-240 VAC, 50/60 Hz adapter (included) Construction \tMetal mounting bracket, black, preassembled with UC Engine and USB to HDMI converter Mounting \tSurface wall mount behind the display device, or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount; the Crestron bracket includes mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate
Country of Origin USA
Brand Crestron
