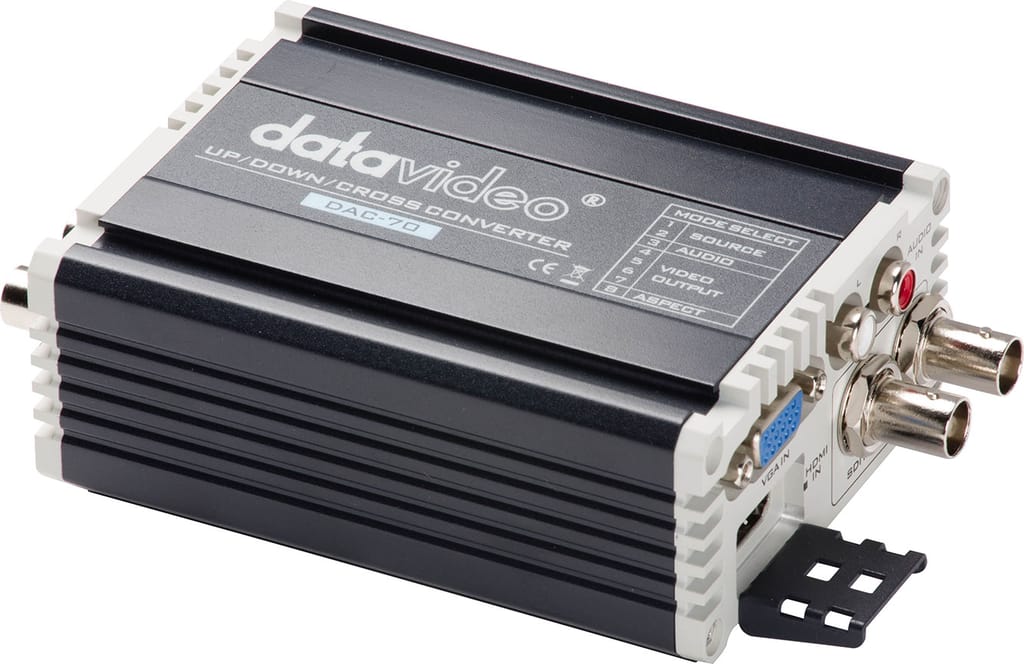

Description of product
Ultra Wide Range Scaler for Excellent Compatibility,Add External Audio or Keep the Embedded Audio,Adjustable brightness, contrast, hue, and saturation settings.
Specifications
| Video Inputs | 1x VGA, 1x HDMI, 1x 3G/HD/SD-SDI (support Level A and Level B) |
| Loop Through | Yes |
| Conversion | VGA/HDMI/SDI to HDMI/SDI Multi-format Up/Down/Cross |
| Video Outputs | 2x 3G/HD/SD-SDI with embedded Audio (support Level A and Level B) 1x HDMI |
| Audio Inputs | 2x RCA (Stereo Pair), 2x SDI/HDMI Audio embedded |
| Audio Outputs | SDI embedded audio up to 8CH, 48KHz, PCM audio HDMI embedded audio up to 8CH, 48KHz, PCM audio |
| Supported Video Input Formats | 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz), 625i, 576p, 576i, 525i, 480p, 480i, 1920x1080(60Hz), 1280x720(60Hz), 1600x1200(60Hz), 1400x1050(60Hz), 1366x768(60Hz), 1280x1024(60Hz), 1024x768(60Hz), 800x600 (60Hz) |
| Output Resolutions | 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz), 625i, 525i |
| Equalizer | Yes |
| Reclock | Yes |
| SDI Cable Drive | Yes |
| Country of Origin | Taiwan |
| Brand | Datavideo |
