Description of product

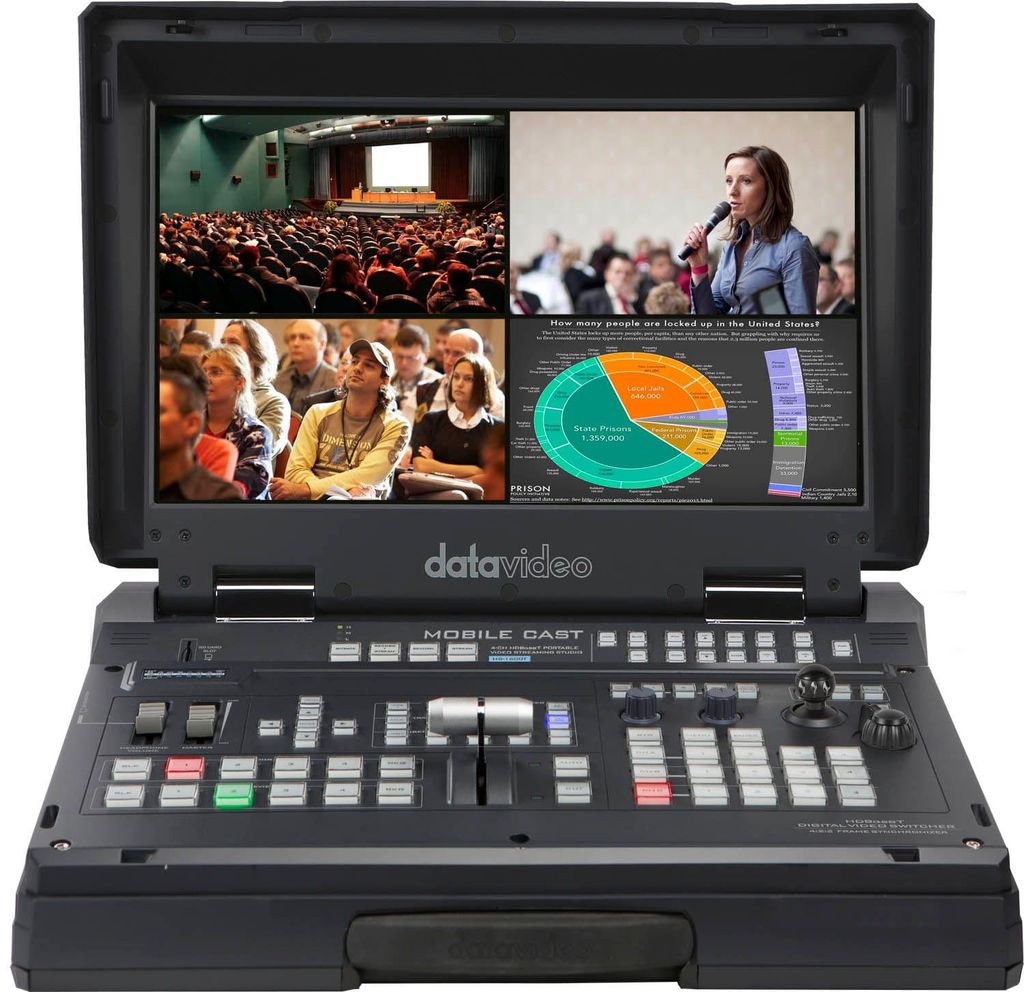

4-Channel HD/SD HDBaseT Portable Video Streaming Studio The HS-1600T brings a new level of simplicity to production workflows. You'll set up faster and easier thanks to its portable "briefcase" design and HDBaseT Technology. And thanks to its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like YouTube and Facebook in no time. 4 video inputs (RJ-45 x 3 + HDMI x 1) and 3 video outputs (HDMI x 3) Audio inputs: XLR Analogue x 2 + RCA Analogue (L/R) x 2. Camera connections typically require one cable for video, a second cable for power, and a third one for control. However, the HS-1600T is able to do all of the above using only one ethernet cable for each camera. This increase in flexibility greatly reduces setup time, and now you can mount the camera in challenging locations (like spots without nearby power outlets)


Down-converted Output Yes
Built-in Monitor Display 17.3 HD TFT LED backlit, 1920x1080 pix
Built-in Audio Mixer Yes, 4 channels
Computer Graphic Interface 1 via HDMI
Streaming Control Web browser UI for configuration and control Socket commands
Recording Setting Control Web UI for system configuration and control
Video Standard HD & SD
Video Input 3 x HDBaseT 1 x HDMI
Video Output 3 x HDMI PGM 1 x STREAM (RJ-45
Streaming Video Encoding H.264 / AVC, Main/ High Profile Configurable Bit-rate up to 10Mbps
Streaming Audio Encoding AAC-LC Configurable bit rate range from 32Kbps to 384Kbps Sample rate: 48KHz, 16bit
Embedded Audio Support Input 2 channels, Output 2 channels
USK 1x USK Lumakey
Country of Origin Taiwan
Brand Datavideo
