Description of product

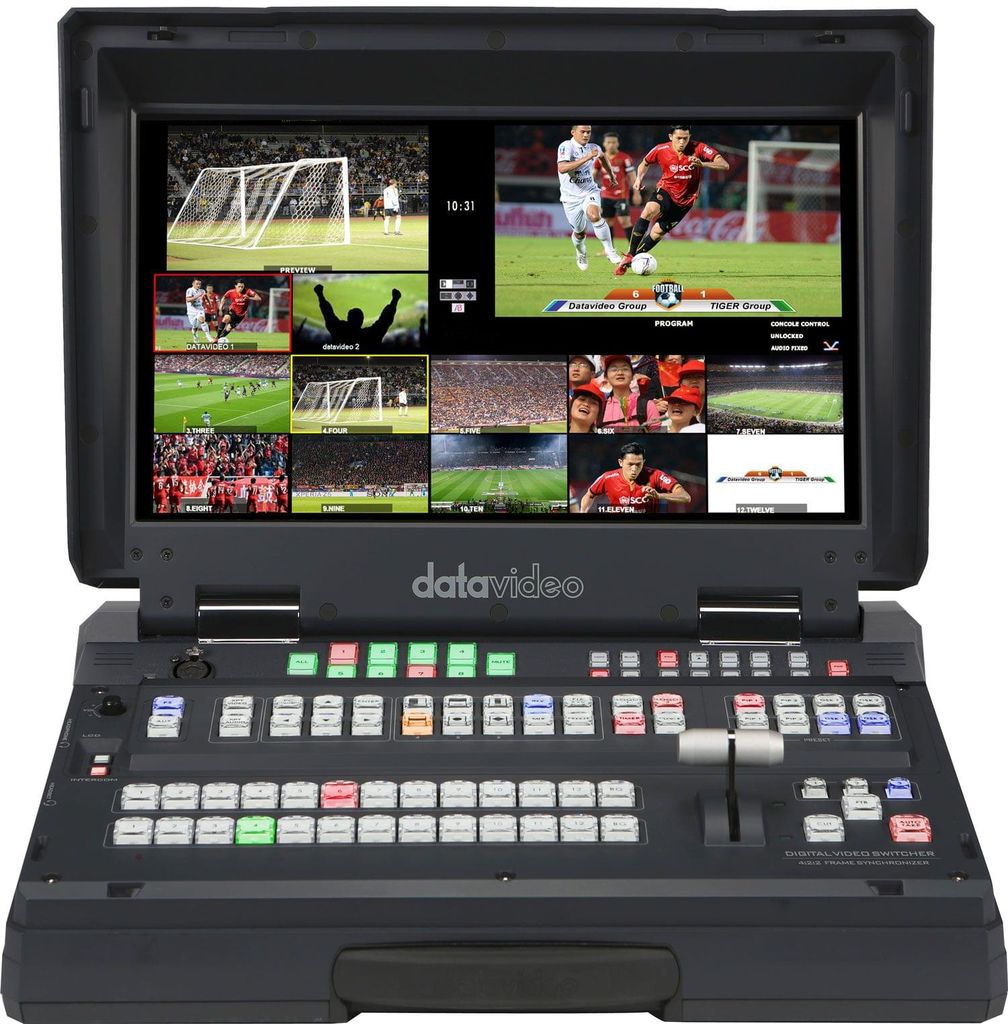

HD/SD 8/12-Channel Portable Video Studio, This professional studio includes a built-in switcher, intercom, tally, audio delay and monitor. Supports up to 12 HD or SD inputs in a variety of configurations, 3 SDI and 1 HDMI freely assignable outputs. 2 x PIP and 2 x DSK assignable for luma key or alpha key. Built-in Monitor Display. 17.3 HD TFT LED backlit monior with resolution 1920x1080 pix. Built in 8 Channel Intercom/Talkback system (4 x belt packs supplied) The SE-2850's inputs can be reassigned, giving you more flexibility while organizing the multi-view interface.


Down-converted Output3x SDI
Built-in Monitor Display17.3 inch HD TFT LED backlit, 1920x1080 pix
Computer Graphic InterfaceMax 3 via HDMI
Video StandardHD & SD
Video InputStandard: 8x SDI, 2x HDMI Max: 12x SDI, 3x HDMI
Video Output3x SDI assignable: PGM, PVW, AUX & Clean Out 1x HDMI assignable: PGM & multi-view
Audio Delay CalibrationUp to 8 frames
A+V SwitchingYes
Logo Insertion2 (or 1 logo + 1 clock)
Input Routable / CrosspointAll 12, repeatable
Embedded Audio Support InputInput up to 16 channels, Output 4 channels
DSK2, support Lumakey & Linear key (Key / Fill)
Built-in Intercom & Tally8 channels (4 belt-packs incl.)
Country of OriginTaiwan
