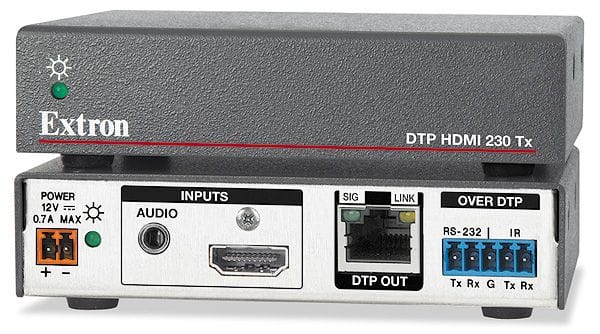

Extron DTP HDMI 4K 230 Tx is a transmitter for sending HDMI, audio, and bidirectional RS 232 and IR signals up to 230 feet (70 meters) over a shielded CATx cable to Extron DTP ?enabled products. It provides an economical and effective means for extending HDMI with embedded multi-channel audio from HDMI-equipped devices. In addition, the DTP HDMI 4K 230 Tx accepts analog stereo audio signals for simultaneous transmission over the same shielded twisted pair cable. It supports video signals at resolutions up to 4K. The compact enclosure size and remote power capability make the DTP HDMI 4K 230 Tx ideal for discreet placement in lecterns, beneath tables, or wherever needed to meet application requirements.
|Frame rate||24, 25, 30, 50, or 60 fps|
|Chroma sampling||4:4:4, 4:2:2, or 4:2:0|
|Colour bit depth||8 bits per color|
|Signal type||HDMI 1.4, HDCP 1.4|
|Max. video data rate||10.2 Gbps (3.4 Gbps per color)|
|Resolution range||Up to 2560x1600* @ 60 Hz or 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz, 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling|
|Connector type||1 female RJ-45 per unit|
|Signal transmission distance||1080p @ 60 Hz - Up to 230' (70 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable, 2560x1600 @ 60 Hz - Up to 130' (40 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable, 4K/UHD @ 30Hz and 60 Hz - Up to 130' (40 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable|
|Video input||1 single link HDMI (or DVI-D*)|
|Country of origin||USA|
