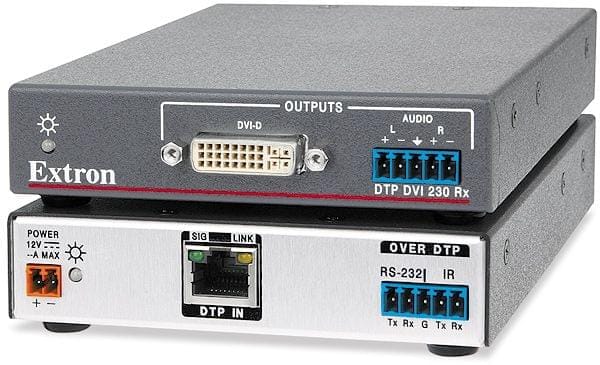

Extron DTP Receiver for DVI 230
Features
- Receives single link DVI-D plus control and analog audio up to 230 feet (70 meters) over a shielded CATx cable
- Supports computer and video resolutions up to 4K
- Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
Description of product
Extron DTP DVI 4K 230 Rx is a digital twisted pair receiver that works with Extron DTP enabled products to send DVI D video, audio, and bidirectional RS 232 and IR signals up to 230 feet (70 meters) over a shielded CATx cable. It provides an economical and effective means for extending single link DVI D or HDMI signals. In addition, the DTP DVI 4K 230 Rx accepts analog stereo audio signals from a DTP enabled product over the same shielded twisted pair cable. It supports video signals at resolutions up to 4K. The compact enclosure size and remote power capability make the DTP DVI 4K 230 Rx ideal for discreet placement in lecterns, behind flat-panel displays, or wherever needed to meet application requirements.
Specifications
| Frame rate | 24, 25, 30, 50, or 60 fps |
| Chroma sampling | 4:4:4, 4:2:2, or 4:2:0 |
| Colour bit depth | 8 bits per color |
| Signal type | HDMI 1.4, HDCP 2.3 |
| Max. video data rate | 10.2 Gbps (3.4 Gbps per color) |
| Resolution range | Up to 2560x1600* @ 60 Hz or 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz, 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling |
| Connector type | 1 single link DVI-D (or HDMI*) |
| Signal transmission distance | 1080p @ 60 Hz - Up to 230' (70 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable, 2560x1600 @ 60 Hz - Up to 130' (40 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable, 4K/UHD @ 30Hz and 60 Hz - Up to 130' (40 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable |
| Country of Origin | USA |
| Brand | Extron |
