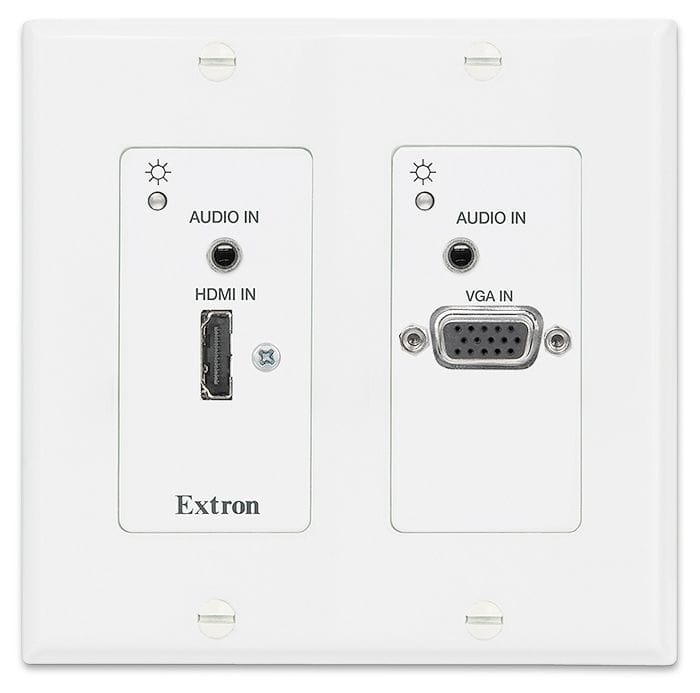

Extron DTP T UWP 4K 232 D is a two input, decorator-style transmitter for sending HDMI, VGA, control, and analog audio up to 230 feet (70 meters) over a shielded CATx cable to Extron DTP-enabled products. The HDCP-compliant transmitter provides one HDMI input and one VGA input, both with independent analog stereo audio connections. The DTP T UWP 4K 232 D supports video signals at resolutions up to 4K. Integrator-friendly features include analog stereo audio embedding, EDID Minder , auto-switching between inputs, RS-232 and contact closure remote control for simplified input selection, remote power capability, and bidirectional RS-232 pass-through for remote AV device control. The wall-mountable design of the DTP T UWP 4K 232 D provides the convenience of placing input connections precisely where they are needed.
|Frame rate||24, 25, or 30 fps|
|Video output||1 DTP 230 output|
|Chroma sampling||4:4:4 or 4:2:2|
|Colour bit depth||8 bits per color|
|Signal type||DVI 1.0, HDMI 1.4, HDCP 1.4|
|Max. video data rate||10.2 Gbps (3.4 Gbps per color) - HDMI6.75 Gbps (2.25 Gbps per color) - VGA|
|Resolution range||Up to 1920x1200 or 1080p @ 60 Hz; 8-bit color depth 2048x1080 (2K) @ 60 Hz, 4K (4096x2160) @ 30 Hz or 4K UHD (3840 x 2160) @ 30 Hz; 8-bit color|
|Connector type||1 female RJ-45 per unit|
|Signal transmission distance||1080p @ 60 Hz - Up to 230' (70 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable, 2048x1080 (2K) @ 60 Hz - Up to 130' (40 m) using STP cable or XTP DTP 24 cable, 4K/UHD @ 30 Hz - Up to 130' (40 m) using STP cable or XTP DTP 24 cable|
|Video input||1 female HDMI type A , 1 female 15-pin HD (RGB)|
|Country Of Origin||USA|
