Extron XPA 4002-70V

Extron XPA 4002-70V

Warranty: One-Year Manufacturer Warranty from the date of invoice,Conditions apply




Features
  • Professional grade signal-to-noise and THD+N performance
  • Extron Patented CDRS - Class D Ripple Suppression
  • ENERGY STAR qualified amplifier

Description of product

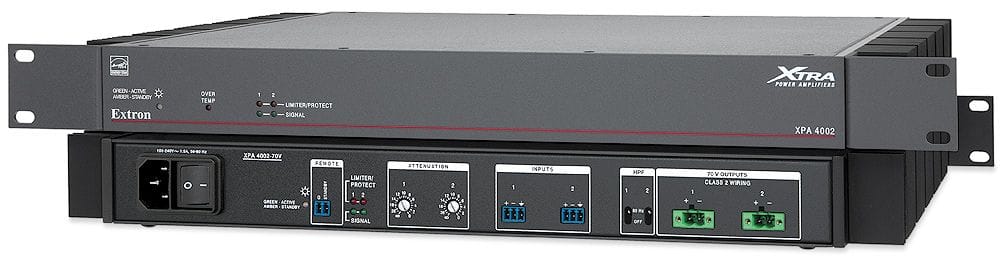

Extron XTRA Series XPA 4002 is a 1U, convection-cooled power amplifier delivering two channels of 400 watts rms. This professional grade amplifier features a 100 dB signal-to-noise ratio with 0.1% THD+N. The XPA 4002 is an ENERGY STAR qualified amplifier with an Extron exclusive, highly efficient, advanced Class D amplifier design. It also features patented CDRS - Class D Ripple Suppression technology that provides a smooth, clean audio waveform and an improvement in signal fidelity over conventional Class D amplifiers. The XPA 4002 is half the size of comparable amplifiers, conserving rack space and weighing only 9 lbs (4 kg). The Extron exclusive, high efficiency design generates very little heat and allows the amplifier to be convection cooled.

Specifications

Audio Voltage Gain57x (35 dB)
Audio Stereo channel separation75 dB @ 1 kHz (typical)
Audio CMRR75 dB @ 1 kHz (typical)
Audio Input Signal type2 balanced/unbalanced
Audio Input Connectors(2) 3.5 mm captive screw connectors, 3 pole
Audio Output Signal type2 channels 70 V
Audio Output Connectors(2) 5 mm screw lock captive screw connectors, 2 pole
Country of originUSA
BrandExtron
