5f50d590b4d76525a8aae030 Extron XPA U 1002 https://www.origindigistore.in/s/5ee6a1afa31c3e1f1f5f56d0/5f50d594b4d76525a8aae106/xpa-u-1002-2.jpg

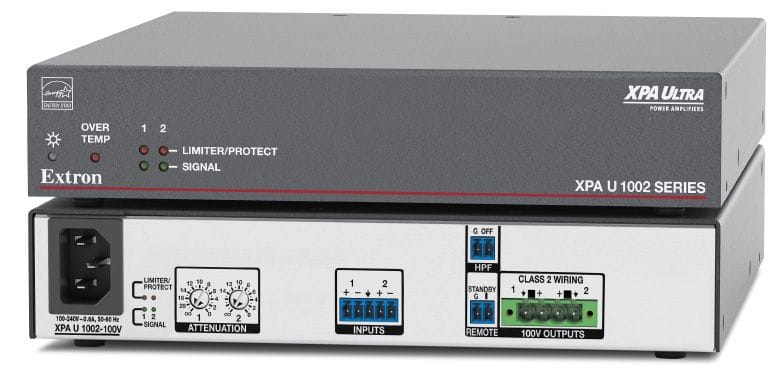

Extron s XPA U 1002 is an ENERGY STAR qualified audio power amplifier delivering two 100 watt channels in a half rack, 1U, convection cooled, plenum rated enclosure that includes rack mount hardware.The XPA U 1002 delivers 100 watts into 8 or 4 ohms while the XPA U 1002 70V and XPA U 1002 100V deliver 100 watts into 70 volt and 100 volt systems, respectively. The XPA U 1002 offers the ability to install units without using rack spaces for ventilation, conserving precious rack space. It features a highly efficient advanced Class D amplifier design with power factor correction, ultra low inrush current, defeatable auto standby with fast wake up, and our patented CDRS Class D Ripple Suppression.

XPA U 1002
in stock INR
Extron
1 1
Extron XPA U 1002

Extron XPA U 1002

Warranty: One-Year Manufacturer Warranty from the date of invoice,Conditions apply




Features
  • Professional grade signal-to-noise and THD+N performance
  • ENERGY STAR qualified amplifier
  • Extron Patented CDRS - Class D Ripple Suppression

Description of product

Extron s XPA U 1002 is an ENERGY STAR qualified audio power amplifier delivering two 100 watt channels in a half rack, 1U, convection cooled, plenum rated enclosure that includes rack mount hardware.The XPA U 1002 delivers 100 watts into 8 or 4 ohms while the XPA U 1002 70V and XPA U 1002 100V deliver 100 watts into 70 volt and 100 volt systems, respectively. The XPA U 1002 offers the ability to install units without using rack spaces for ventilation, conserving precious rack space. It features a highly efficient advanced Class D amplifier design with power factor correction, ultra low inrush current, defeatable auto standby with fast wake up, and our patented CDRS Class D Ripple Suppression.

Specifications

Audio Voltage Gain XPA U 1002 23x (27 dB), XPA U 1002-70V 57x (35 dB),XPA U 1002-100V 81x (38 dB)
Audio Stereo channel separation 75 dB @ 1 kHz (typical)
Audio CMRR 2 balanced/unbalanced
Audio Input Signal type (1) 3.5 mm captive screw connector, 5 pole
Audio Input Connectors XPA U 1002 2 channels, 4 or 8 ohms XPA U 1002-70V 2 channels, 70V XPA U 1002-100V 2 channels, 100V
Audio Output Signal type (1) 5 mm screw lock captive screw connector, 4-pole
Country of origin USA
Brand Extron
