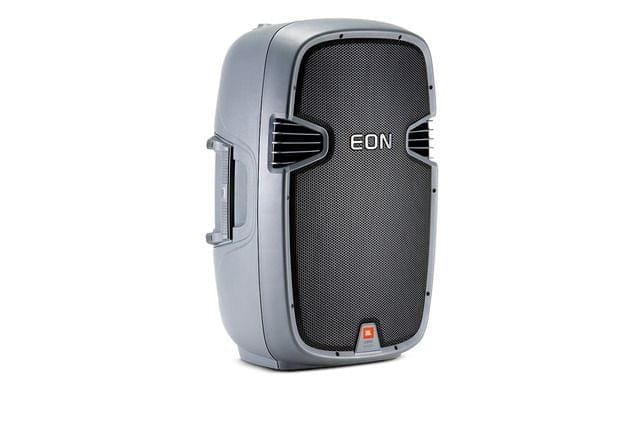

The EON315 is a 15-inch, two-way, powered, portable speaker system. It is a complete self contained sound reinforcement system, capable of full-bandwidth reproduction at high levels with the added benefit of a microphone pre-amp enabling the direct connection of a dynamic microphone. The EON315 is comprised of a 380 mm (15 in) JBL woofer, a 25.4 mm (1 in) neodymium high frequency compression driver coupled to a 100 H by 60 V waveguide. Both components are driven by the discrete channels of a 280 watt Class-D integrated power amplifier. The input section contains all cross-over functions, protection, and system EQ functionality.
|Frequency Response (-10dB)||38 Hz to 20 kHz (EQ in Flat position)|
|System Power Rating||280 W continuous560 W peak|
|Coverage||100 deg H x 60 deg V nominal|
|Country of Origin||USA|
