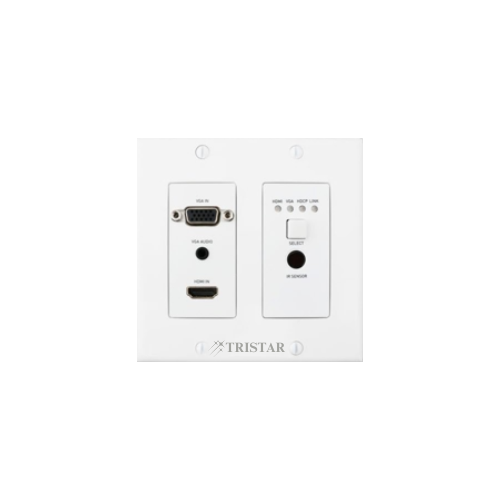

Two inputs switching between HDMI and VGA to an HDBT output HDMI and VGA inputs AV switching transmitter Supports automatic switching HDMI input up to 4K@60Hz (YUV 4:2:0) and HDCP 2.2, VGA input up to 1920×1200@60Hz Transmits 4K@60Hz (YUV 4:2:0) and 1080P@60Hz signal up to 100m/330ft via Cat 6a/7 cable Transmits 4K@60Hz (YUV 4:2:0) signal up to 70m/230ft and 1080P@60Hz signal up to 100m/330ft via Cat 5e/6 cable Supports RS232 and IR pass-through over HDBaseT Supports one-way PoC function, the transmitter can be powered by the receiver with same PoC module Can be powered by local DC 12V power supply and share power with near device via the 2-pin phoenix power out connector Independent DIP switch provided for VGA EDID management HDMI input EDID is copied from HDBaseT receiver Supports firmware update
