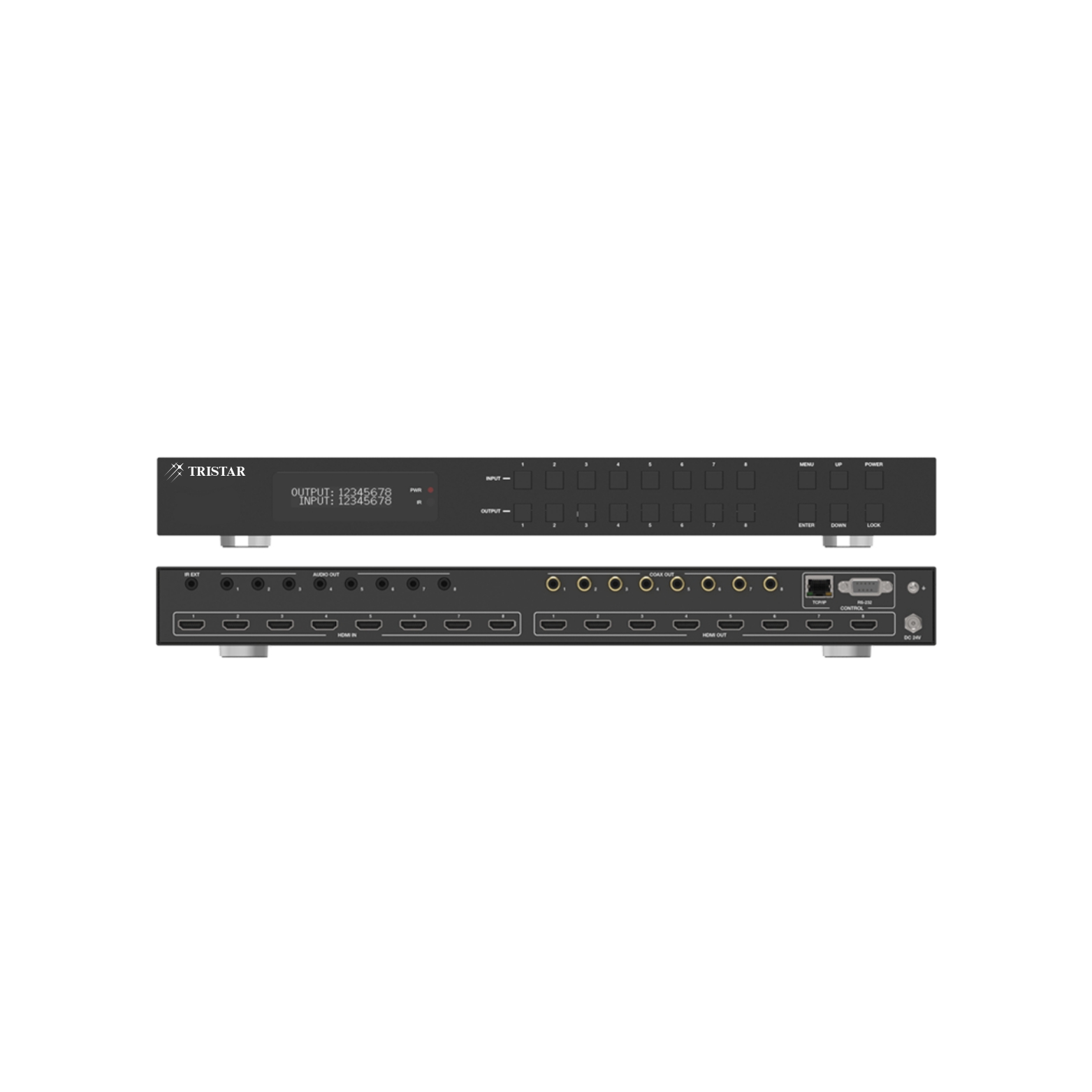

UHD HDMI switcher- HDMI 8*8 matrix switcher

Compatible with HDMI 1.3b standard. HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant. Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports. Support 18Gbps video bandwidth. Dolby Vision, HDR10+ and HLG are supported. Support 4K->1080P Down Scaler for each output port. HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio) Audio de-embedded is supported via analog and coax ports. ARC, CEC and smart EDID management are supported. Control via front panel buttons, IR remote, RS-232, LAN and Web GUI. 1U rack mounted design with front panel OLED display
