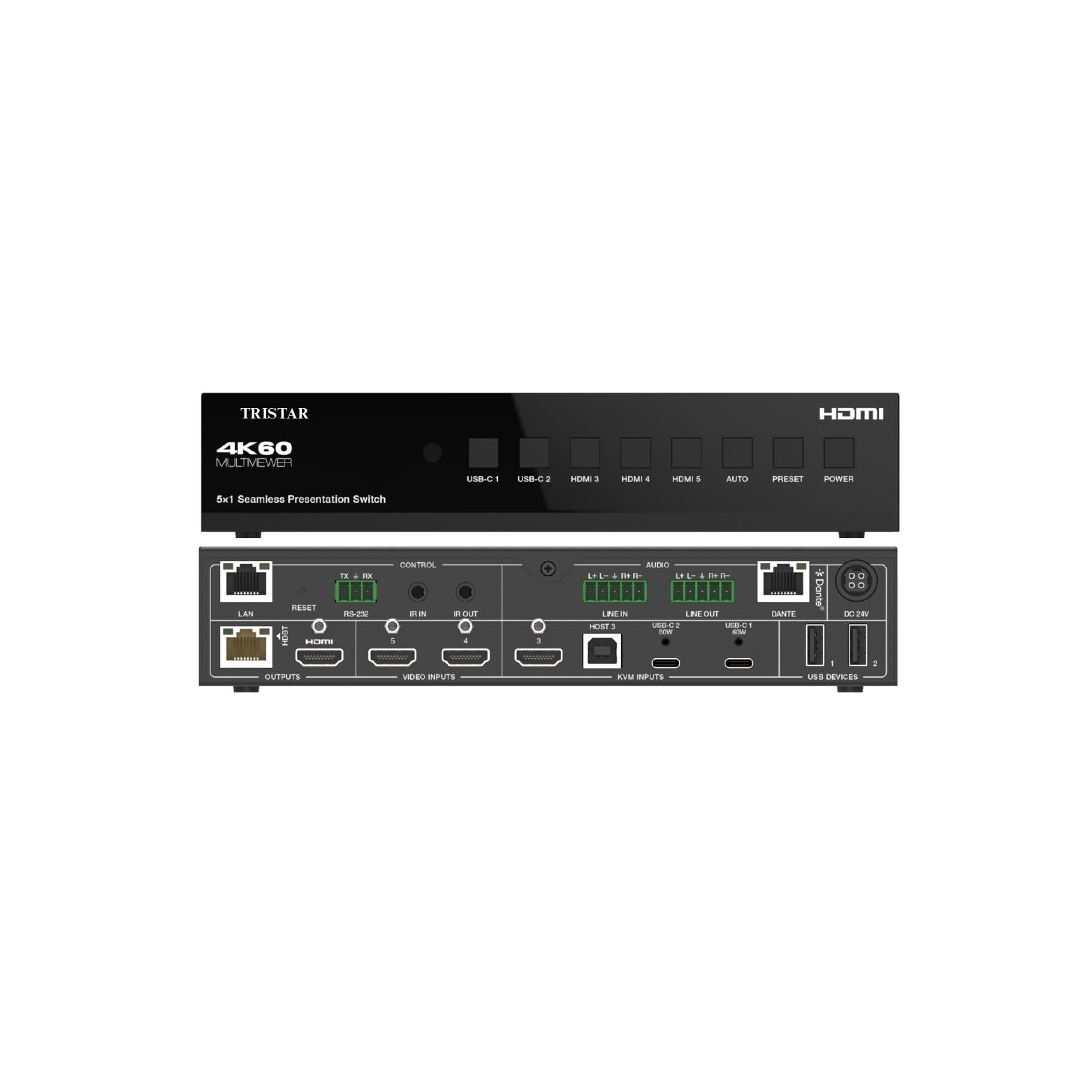

HDMI 2.0b, HDCP 2.2 and DP 1.2 compliant Support 18Gbps video bandwidth Support video resolution up to 4K@60Hz 4:4:4 Uncompressed 4K60 over HDBT 3.0 up to 132ft/40m via single CAT6A (F/FTP) cable Uncompressed 1080P&4K30 over HDBT 3.0 up to 230ft/70m via single CAT6A (F/FTP) cable Up to 5 categories of multiview display modes: Single/PIP/PBP/Triple/Quad Multiple multiview display modes: Auto/Single/PIP/PBP/Triple/Quad/Custom Support 5x1 seamless switching (single screen) and fast switching (multiview) function Input: 2x USB-C, 3x HDMI, 1x Analog audio, 1x Dante 2ch Output: 1x HDMI and 1x HDBT mirrored, 1x Analog audio, 1x Dante 2ch HDMI and HDBaseT (PoE) outputs (Mirrored) Dante 2x2 audio input and output USB-C supports DisplayPort Alt mode for A/V, USB 2.0, 100M Ethernet and 60W charging Local USB 2.0 KVM switching and extending USB 2.0 over HDBT 3.0 Signal input supports manual switching and automatic switching modes Support analog/Dante audio embedding, analog/Dante audio de-embedding output Dante 2x2 audio input and output CEC/RS-232 control external devices ON/OFF Advanced EDID management Support standard PoE power supply from TX to RX (TX_PSE, RX_PD) Flexible control via front panel buttons, IR remote, RS-232, TCP/IP or Web GUI
